Key feature:
* 36v/48v\52v 250W super power brushless geared hub motor with 15A controller.
* Adjustable 5 level intelligent pedal assist with thumb throttle
* LCD display shows battery level and pedal assistance settings, speedometer, odometer, wattage, speed setting etc.
* Brake Levers cut off the power supply to the motor safely.
* High Efficient pedal assist sensor
*bike rear dropouts - 135mm width

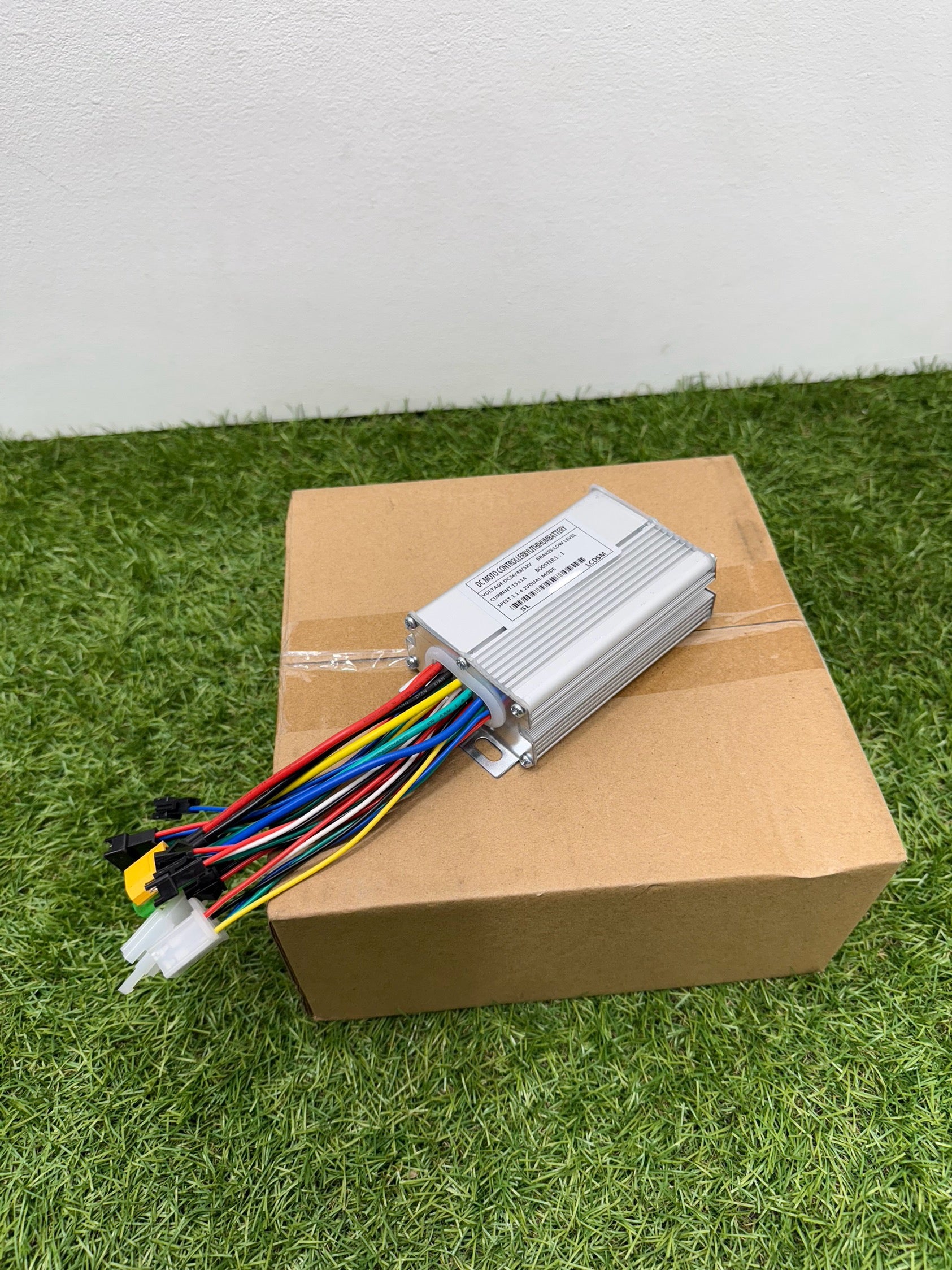

Main technical parameters of the controller：
1. Rated voltage：DC36v/48v
2. Rated current：15A
3. Maximum current：12-15A
4. Rated power：200-250w
5. Maximum power: 250W
6. Static power consumption
7. Driving mode square wave
8. Waterproof basic water protection to IP64
9. This kit has two Blue wires which when connected together restricts the bike to 250w and when disconnected will run at 250w
The kit includes everything you need (except battery) and is easily installed to your bike following the instruction manual provided. Basic tools and mechanical knowledge will be required
pedal assist system is included in the package however it is also a comfortable and fun ride when used without as a twist and go. We recommend the 36V to maximise riding experience.

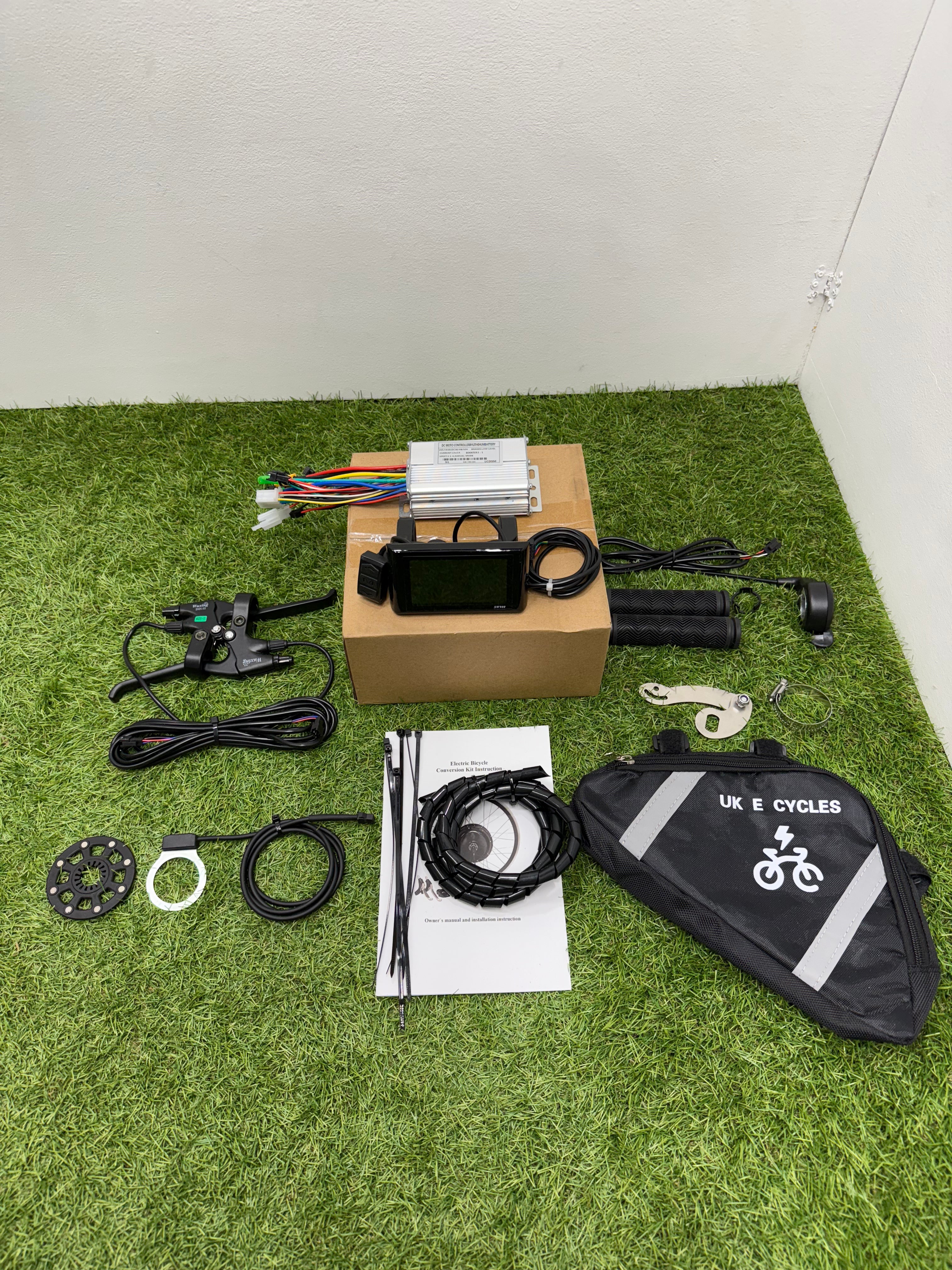

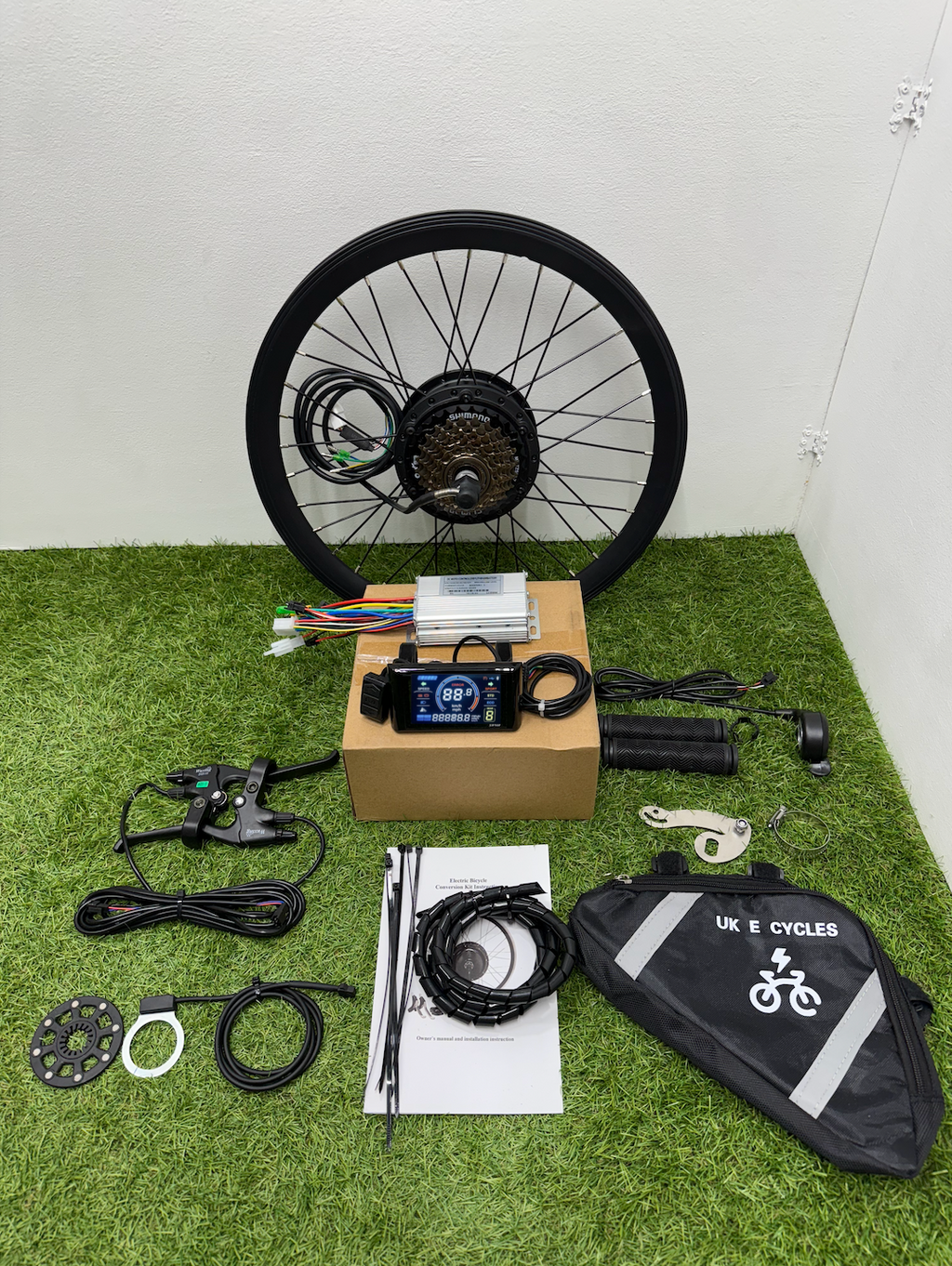

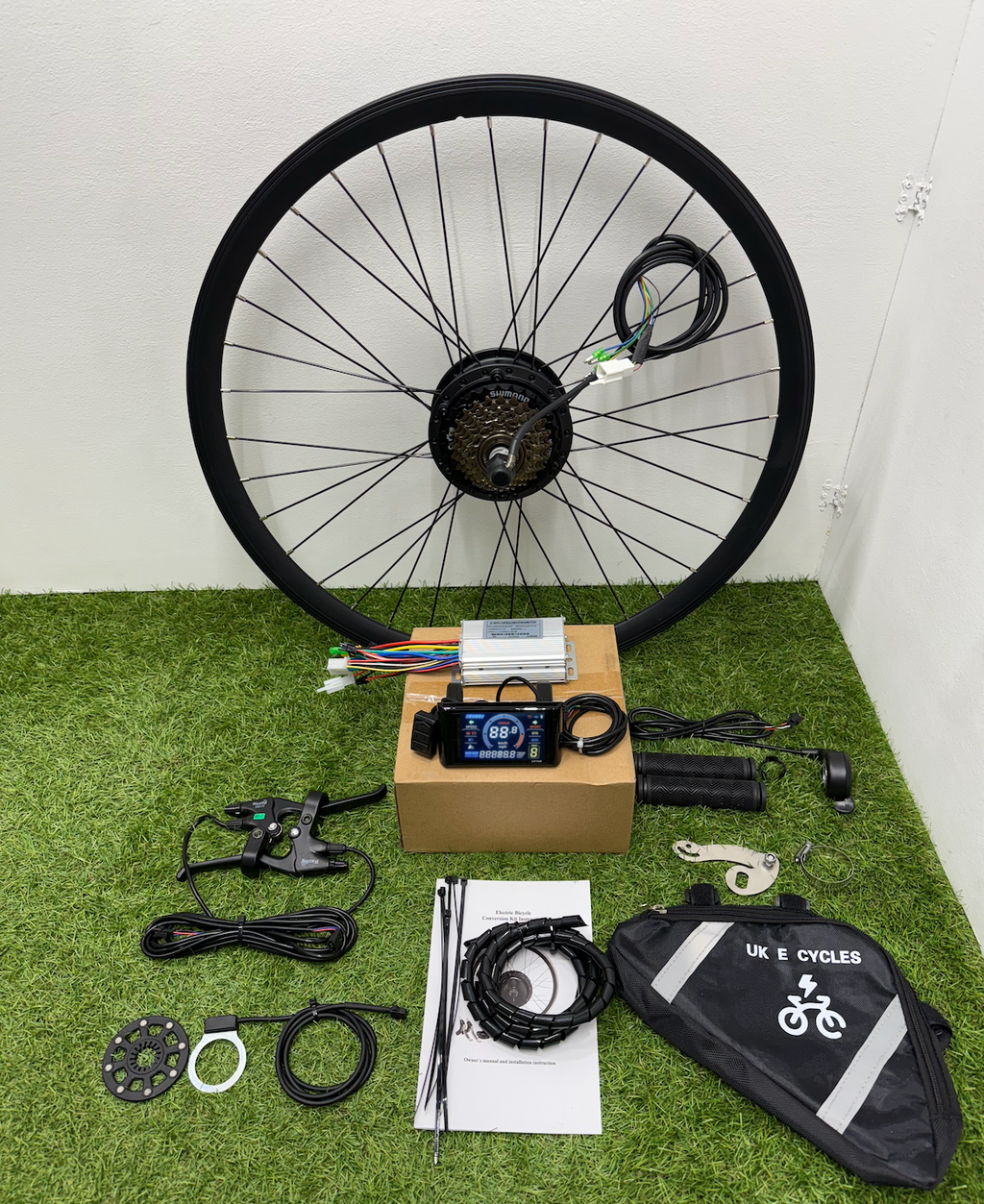

Package Includes:

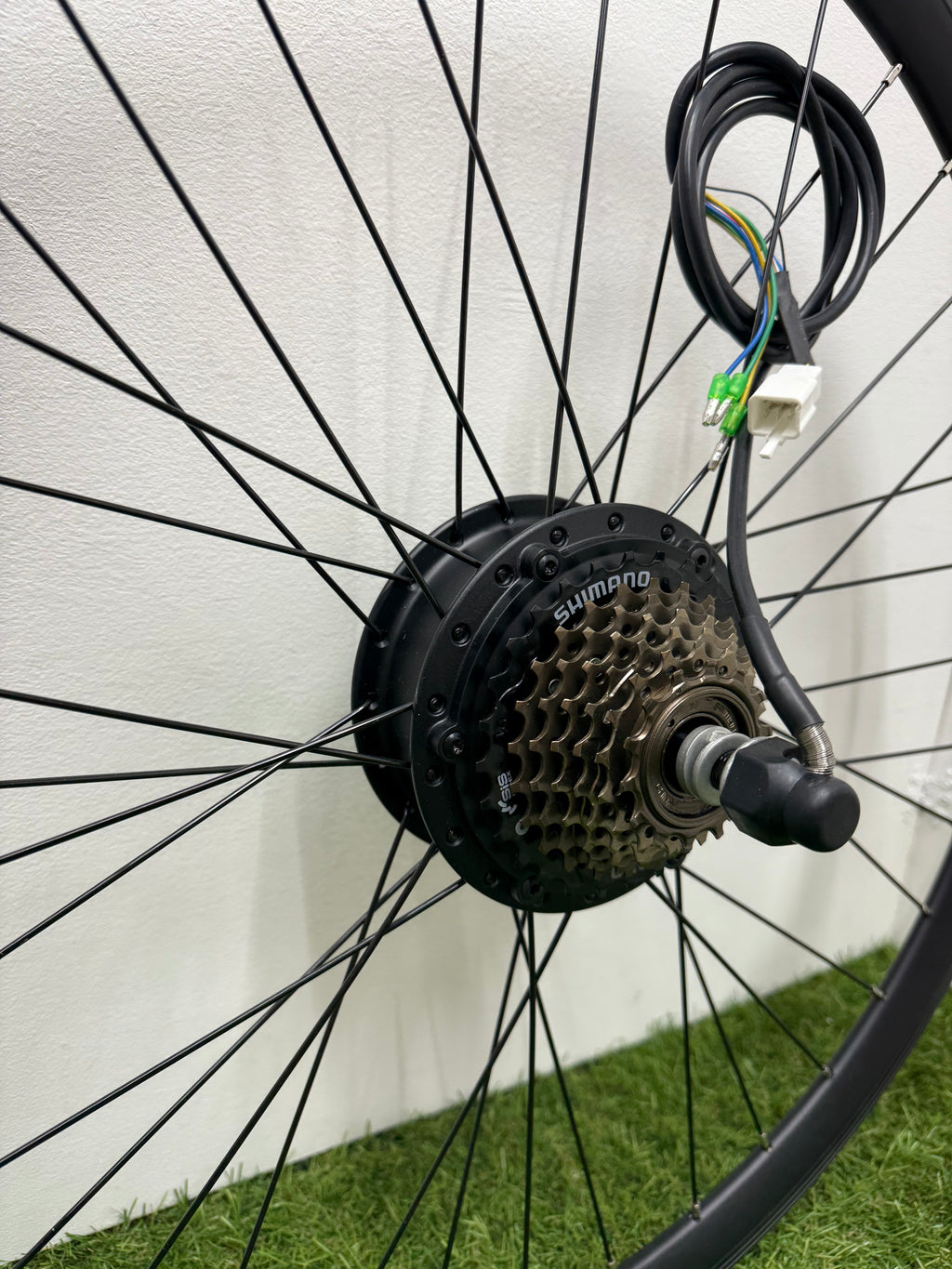

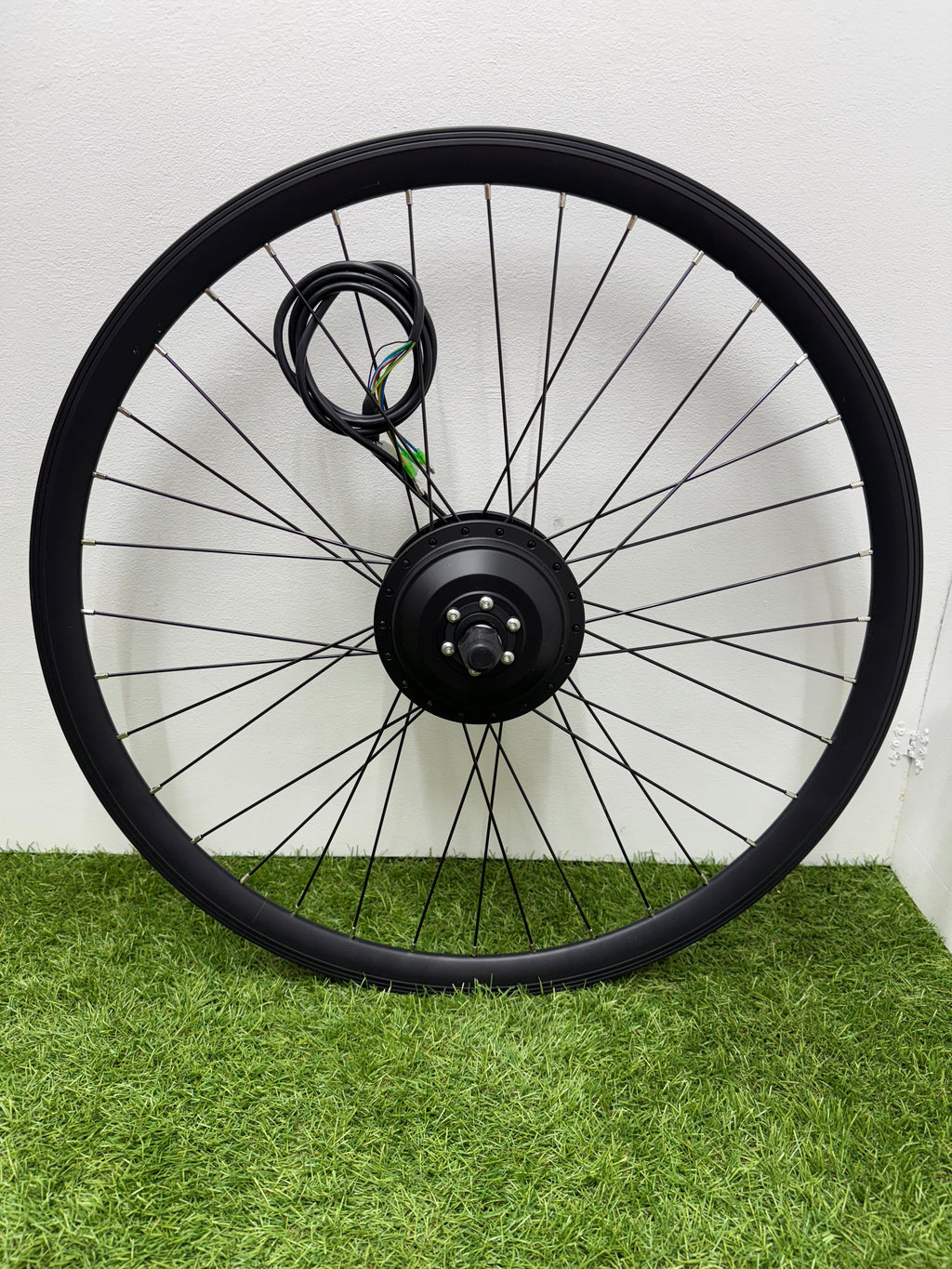

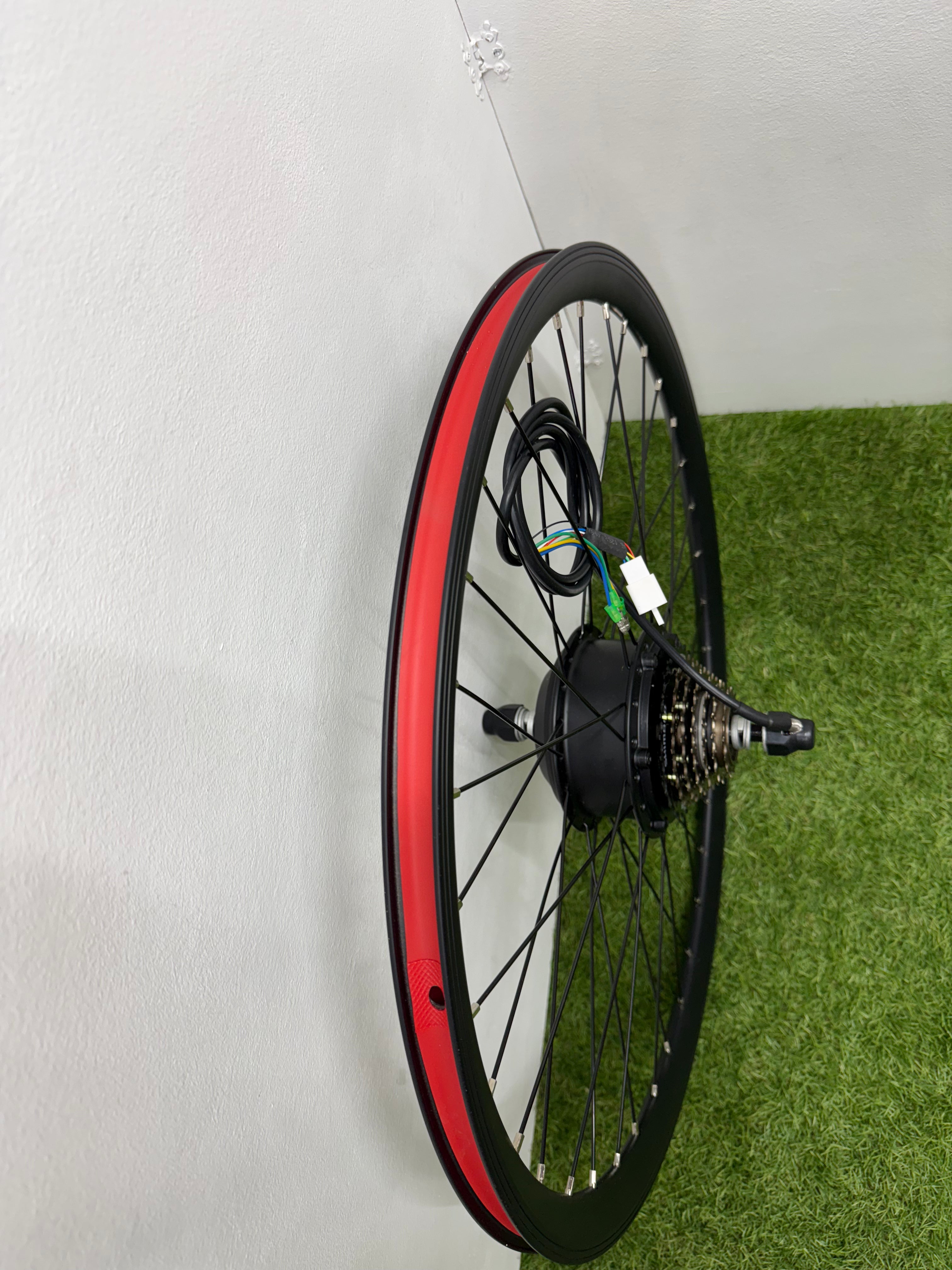

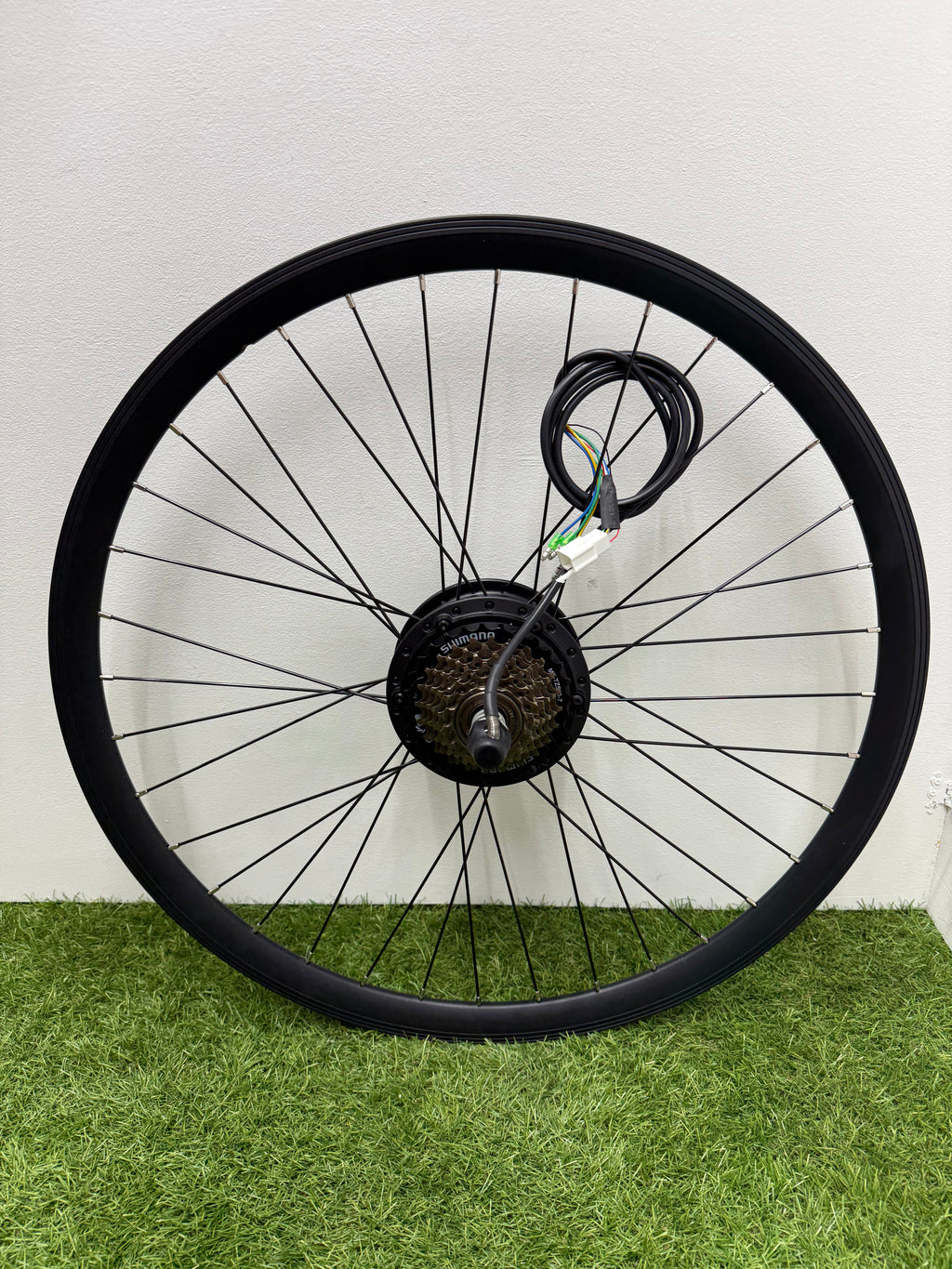

1x wheel with 250w motor
1x 7 speed shimano cassette
1x 15A controller

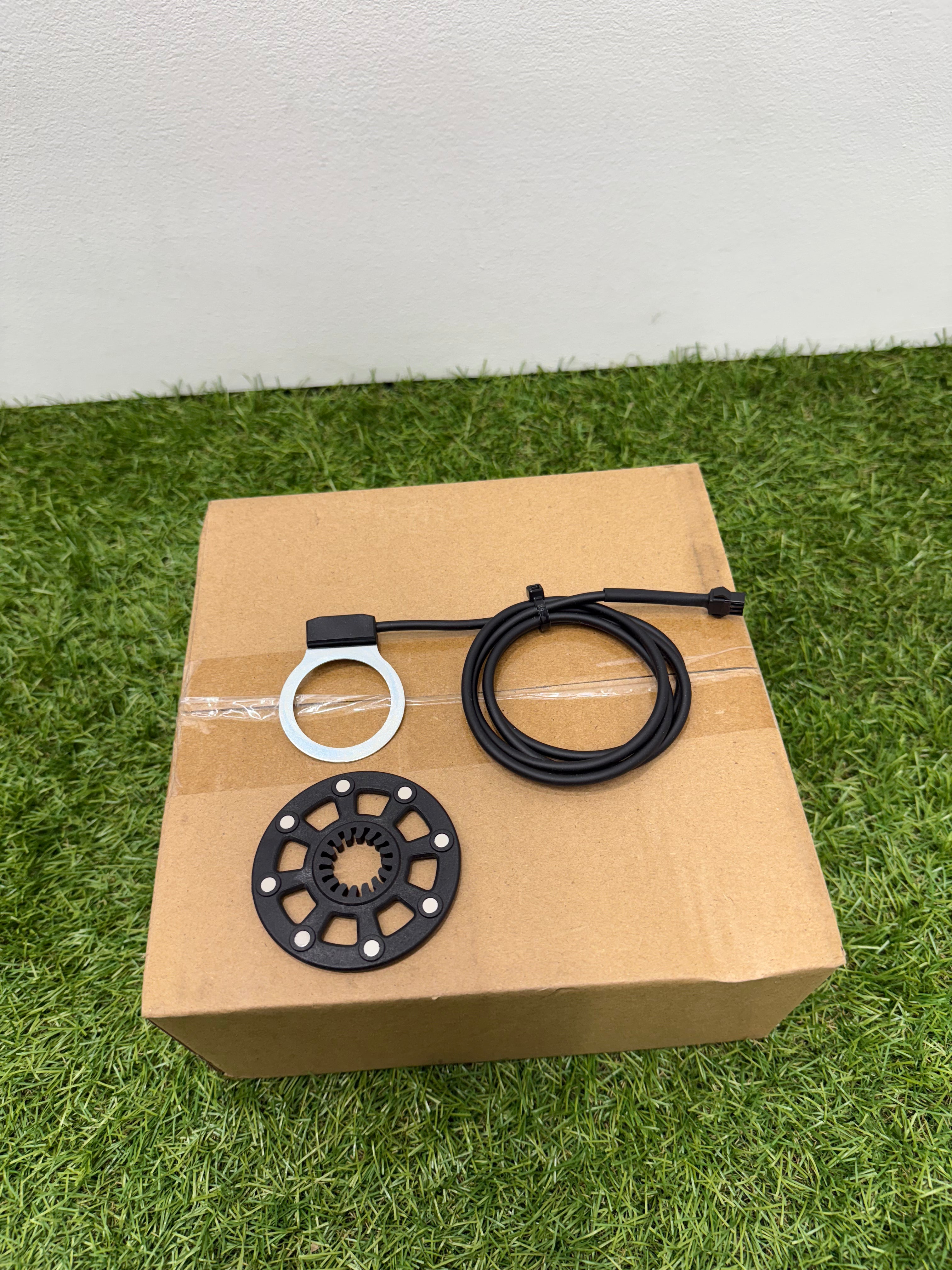

1x Pedal Assist Crank Sensor

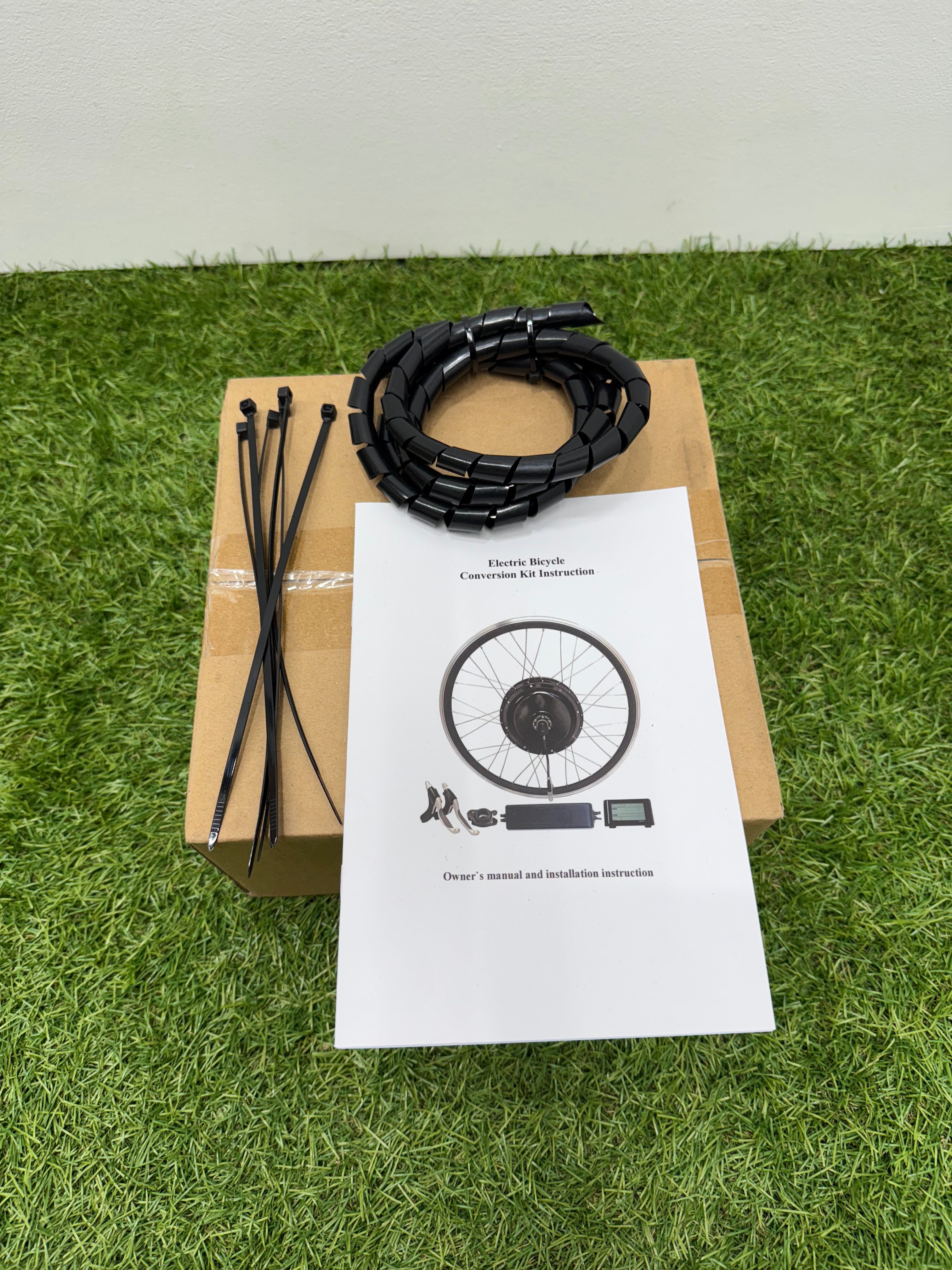

7x Cable Ties

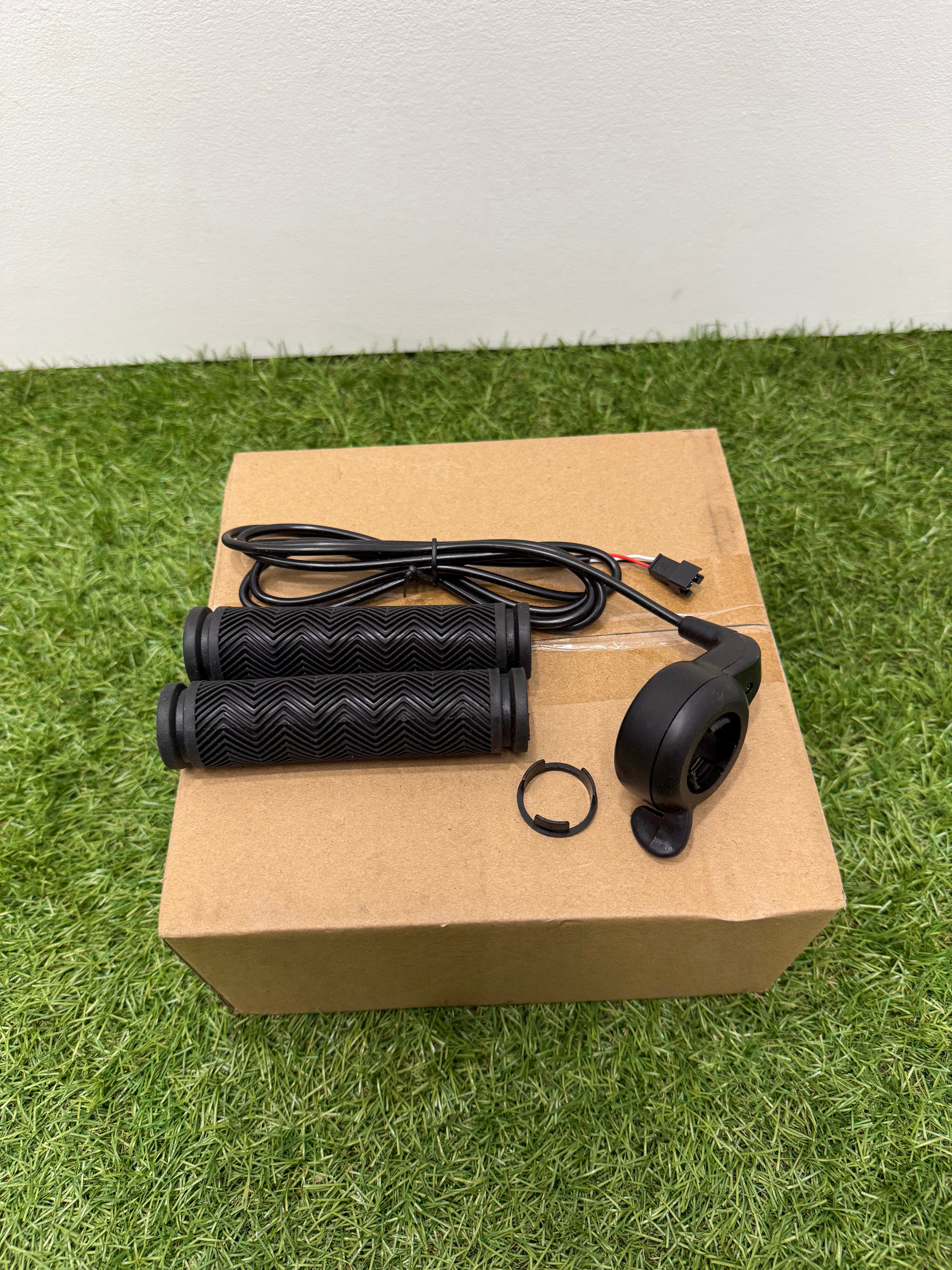

1x Thumb Twist Throttle

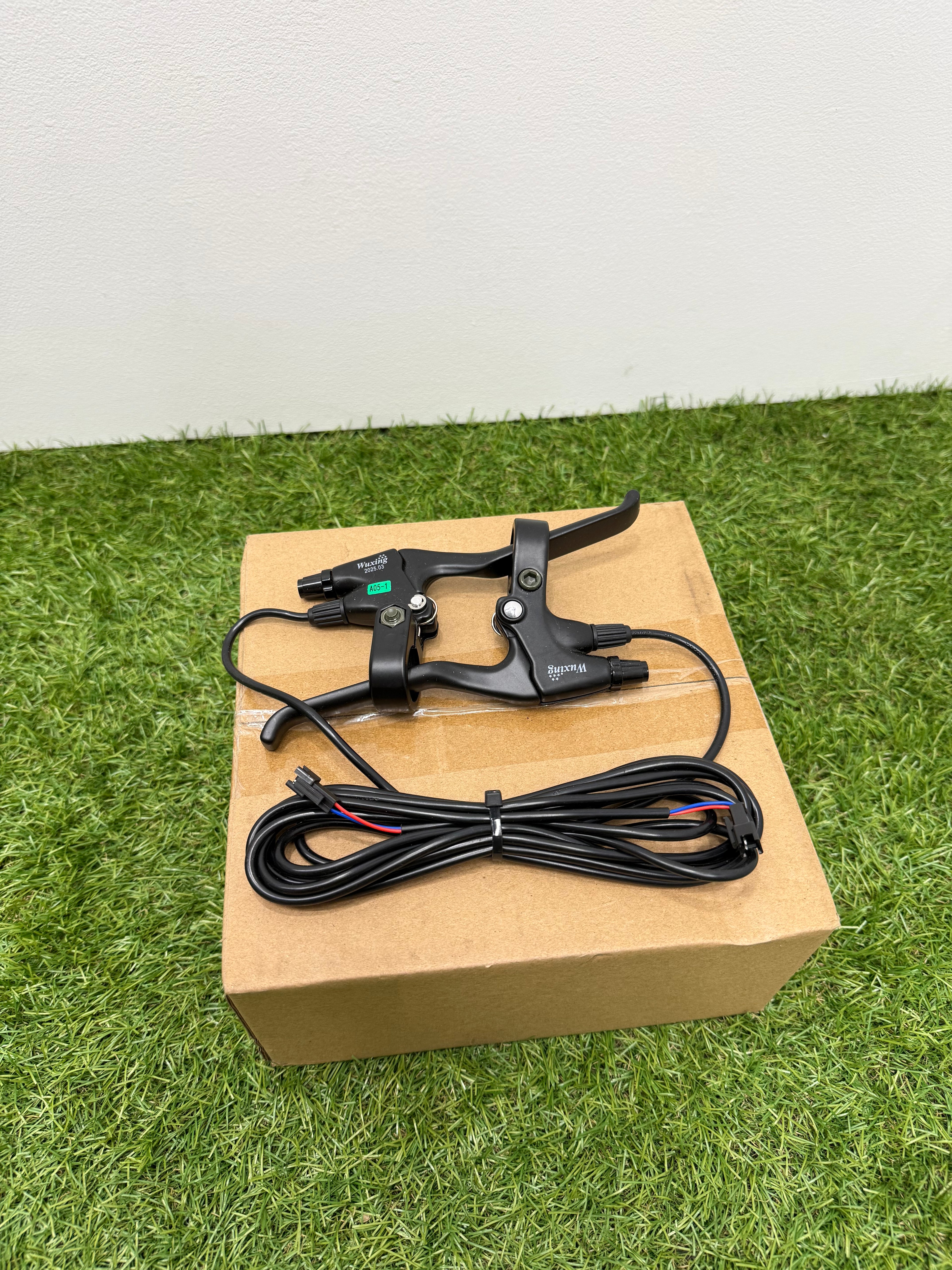

1x Pair of Brake Levers

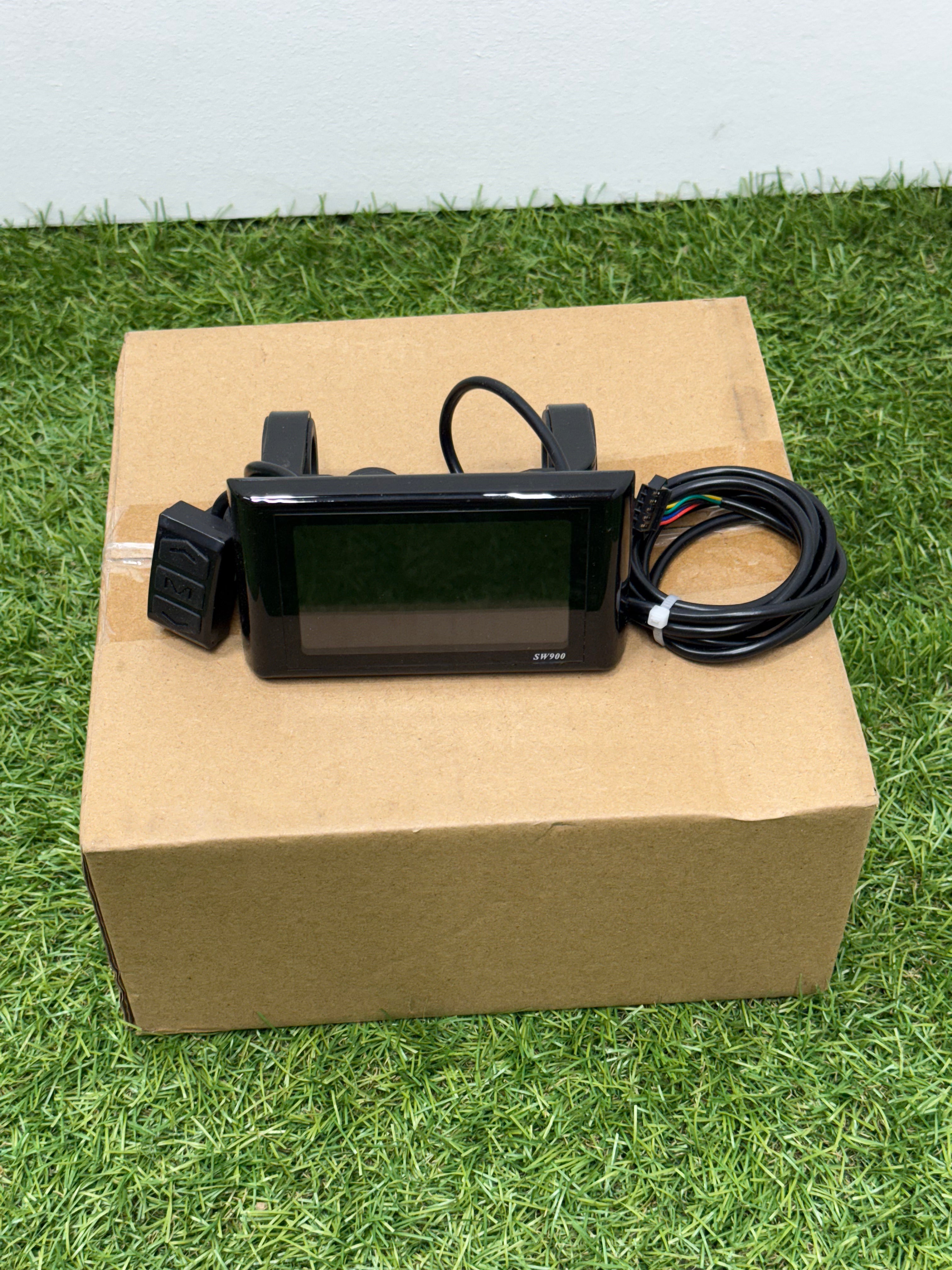

1x LCD Meter - Colour SW900
6x Disc screws

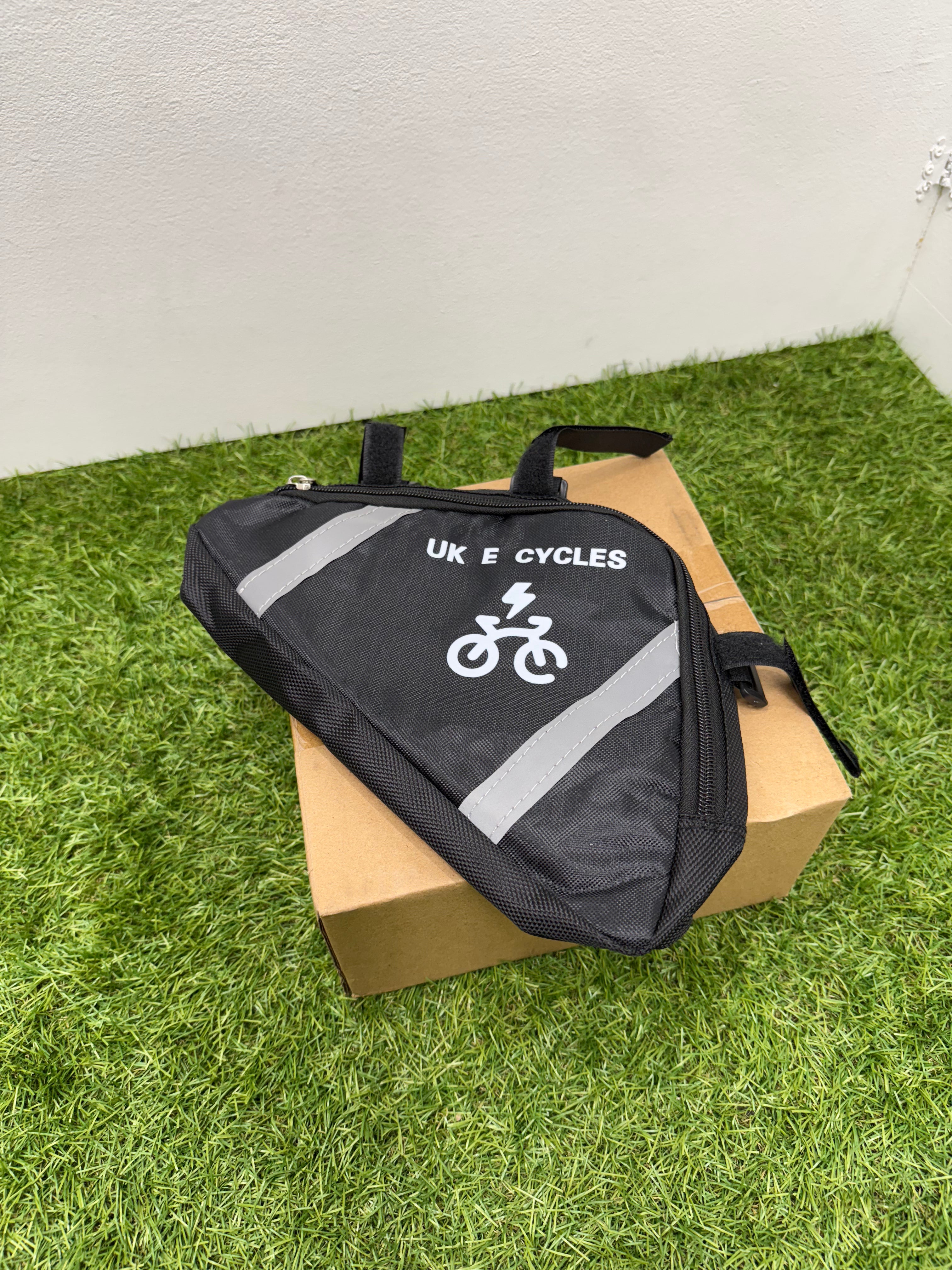

1x controller bag
1x rim tape
1x Pair of grips

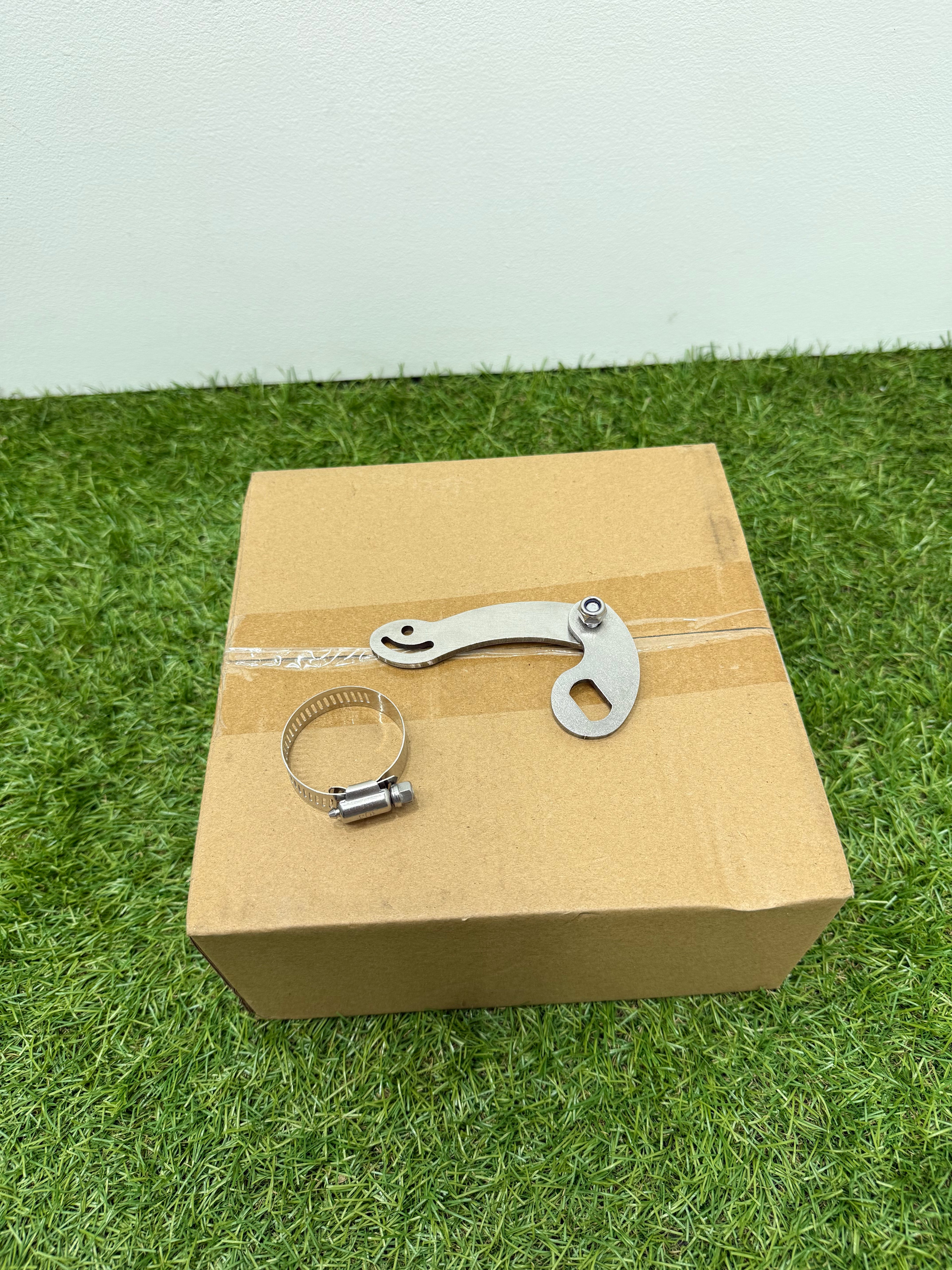

1x torque arm
We have a range of batteries available please see our other listings or get in contact and we can advise
WHAT SIZE KIT DO I NEED?
If you look on your tyre's, this will tell you if your bike has 20”, 24”, 26", 27.5", 29", 700c wheels. Alternatively you can look up your bike's make and model online. Remember that a 'wheel' is a rim and a tyre together, our kits will not equate to the stated size until a tyre is fitted.
Installing a conversion kit involves mechanical and electrical work. Improper installation can cause damage, malfunction, or serious injury. Uk E Cycles is not responsible for any harm, accidents, or damages resulting from. Incorrect installation, Improper use, Modifications to the kit or bicycle and Use of incompatible bicycle components. We strongly recommend installation by a qualified bicycle technician.
By installing or using a conversion kit from Uk E cycles , you agree to the following:
-
Installation must be done correctly. Improper setup can cause injury or damage. Professional installation is recommended.
-
Not all bicycles are suitable for conversion. Check compatibility before use.
-
Follow all local e-bike laws any motor above 250 watts and can exceed 15.5 mph should not be used on uk roads.
-
You assume all risks associated with riding a converted e-bike, including mechanical failure or accidents.
-
Manufacturer is not liable for damage, injury, or legal issues resulting from installation, modification, or misuse of this product.
Use at your own risk. Inspect your bicycle regularly and ride safely.
All e-bikes/ebike kits we sell are designed for riders with a maximum weight of 110 kg. Exceeding this weight limit may result in mechanical or electrical stress beyond the intended design specifications. Please note that any damage caused by operating the e-bike with a rider above 110 kg will void the warranty. Additionally, damage resulting from motor overload—whether due to excessive rider weight, improper use, or operating conditions—will not be covered under warranty.
We have other wheel size’s available please see our other listings
Spun-out wheels, accidental and intentional damage are not covered under warranty
