With MTX 39 Double wall Rim
3000w kit available in 26/27.5/29 inch 72V Ebike Conversion Kit Rear Wheel LCD Colour Display
High power electric bike conversion kit .The kit comes with a speed limiter to set at 250 Watt . Silent motor.
The conversion kit is compatible with Disc Brake only ! Comes with SW900 Colour LCD display allows you to restrict or derestricted your speed between 15mph to 55mph. Just set up the speed you need and motor will cut off when you reach your desired set speed.
The conversion kit is the best quality and relative low weight for size , the motor is sleek and silent making it easy to pedal even without power.
Key feature:
* 72v 3000W super power brushless gearless hub motor with 60A controller.
* Adjustable 5 level intelligent pedal assist with thumb throttle
* LCD display shows battery level and pedal assistance settings, speedometer, odometer, wattage, speed setting etc.
* Brake Levers cut off the power supply to the motor safely.
* High Efficient pedal assist sensor
*bike rear dropouts - 135 mm width
Main technical parameters of the controller：
1. Rated voltage：DC72v
2. Rated current：60+1A
3. Maximum current：60A
4. Rated power：250-3000W
5. Maximum power: 3000W
6. Driving mode square wave
7. Waterproof basic water protection to IP64
8. This kit has two Blue wires which when connected together restricts the bike to 250w and when disconnected will run at 3000w
The kit includes everything you need (except battery) and is easily installed to your bike following the instruction manual provided. Basic tools and mechanical knowledge will be required
pedal assist system is included in the package however it is also a comfortable and fun ride when used without as a twist and go.
The power settings are easily adjusted to suit rider capability. Due to the high power capabilities of the motor this item is for off road use only.

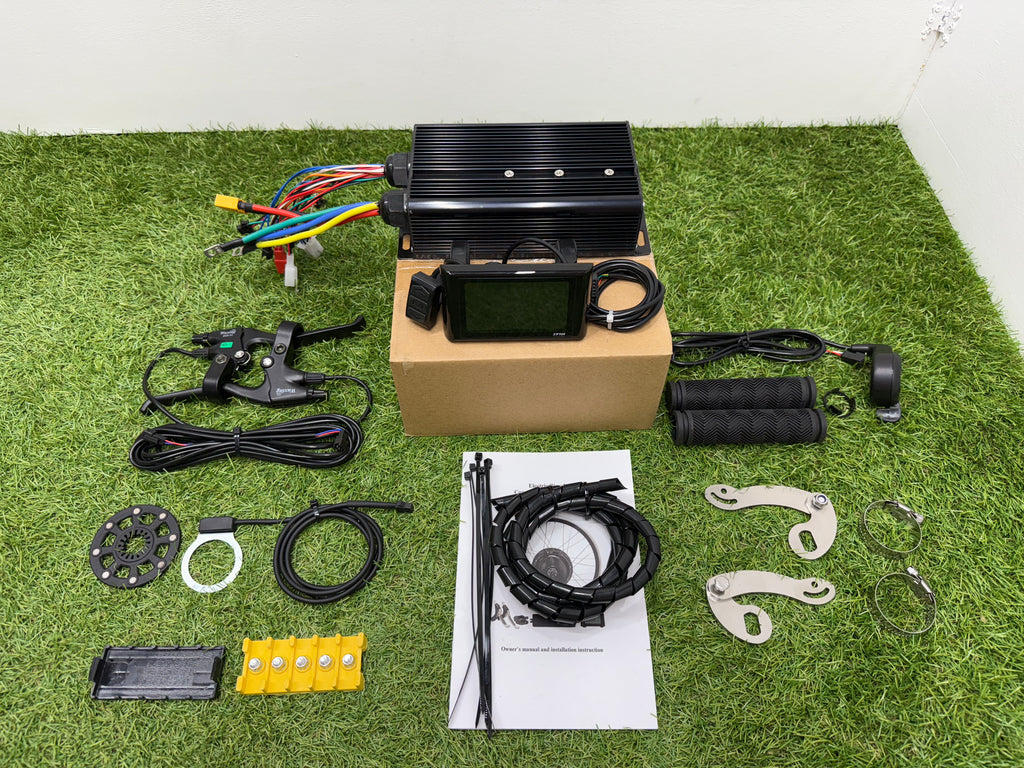

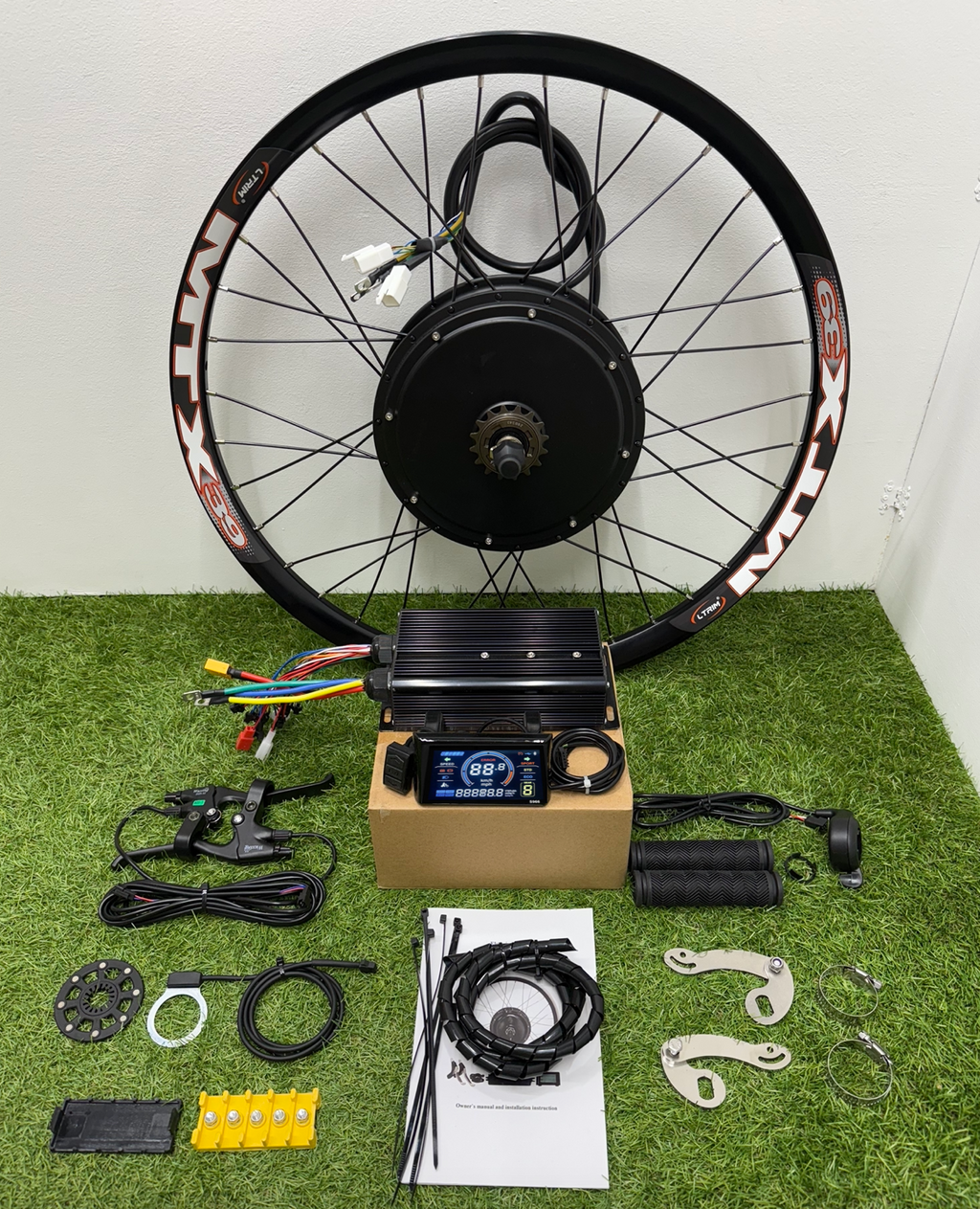

Package Includes:

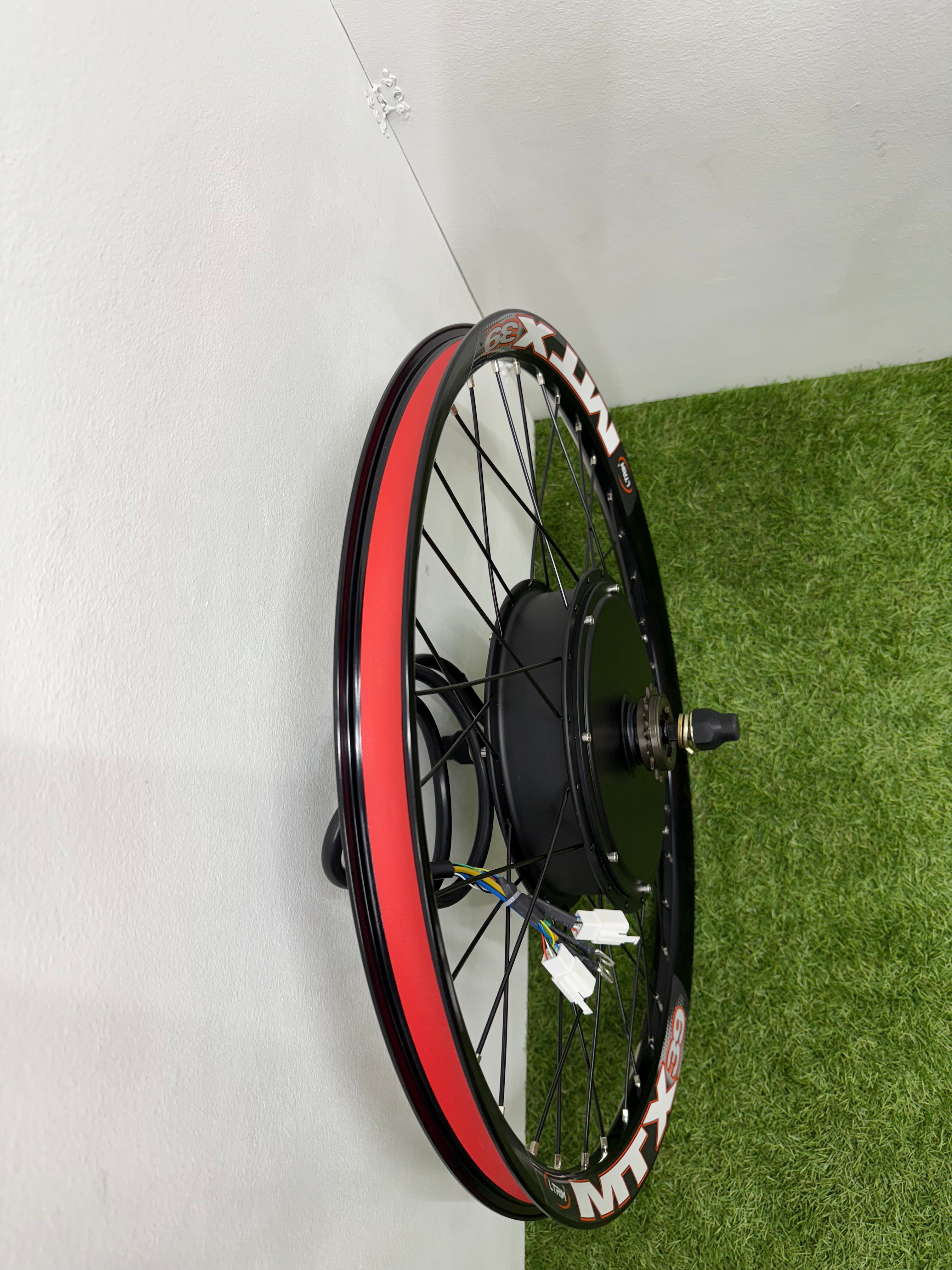

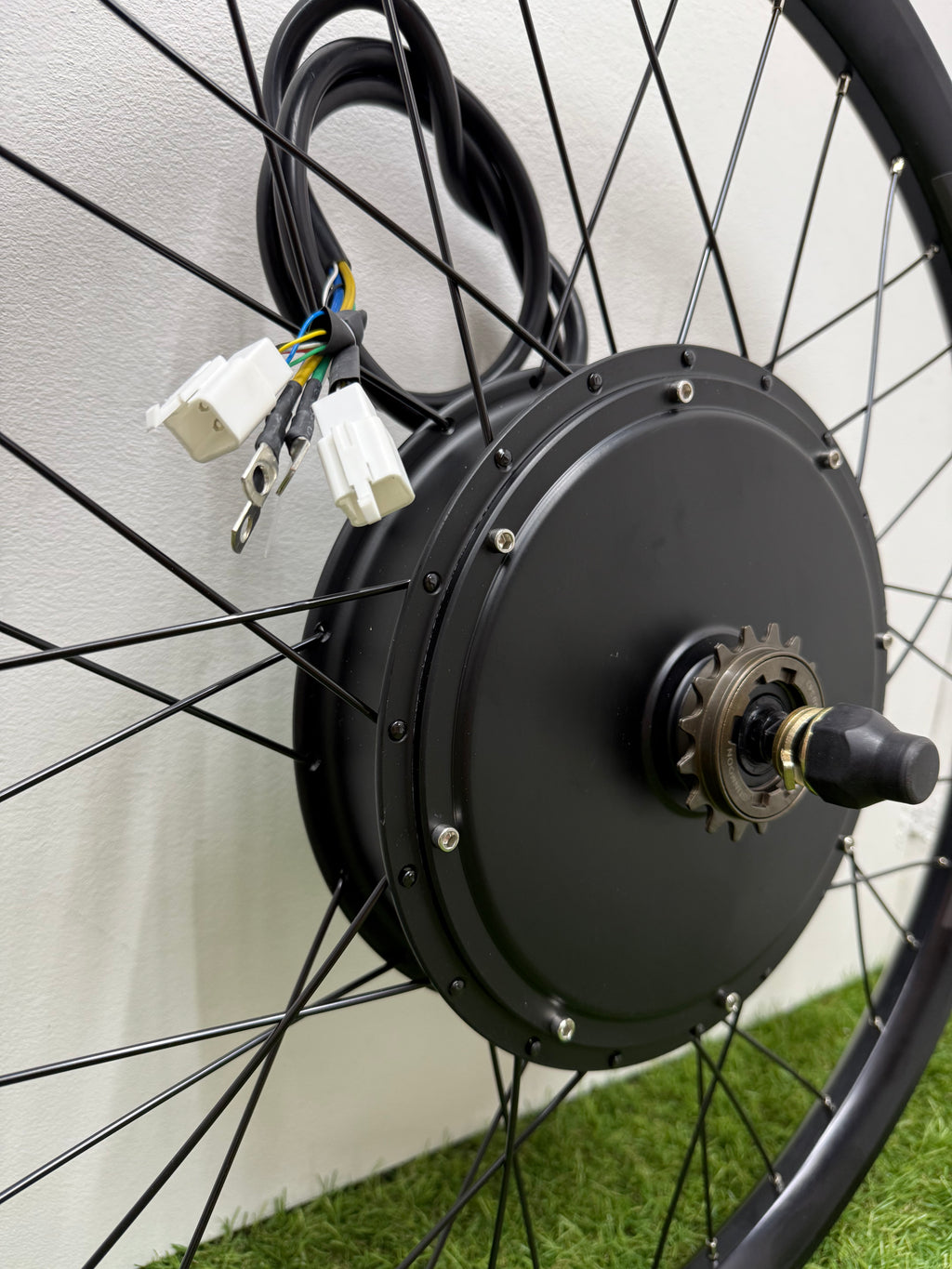

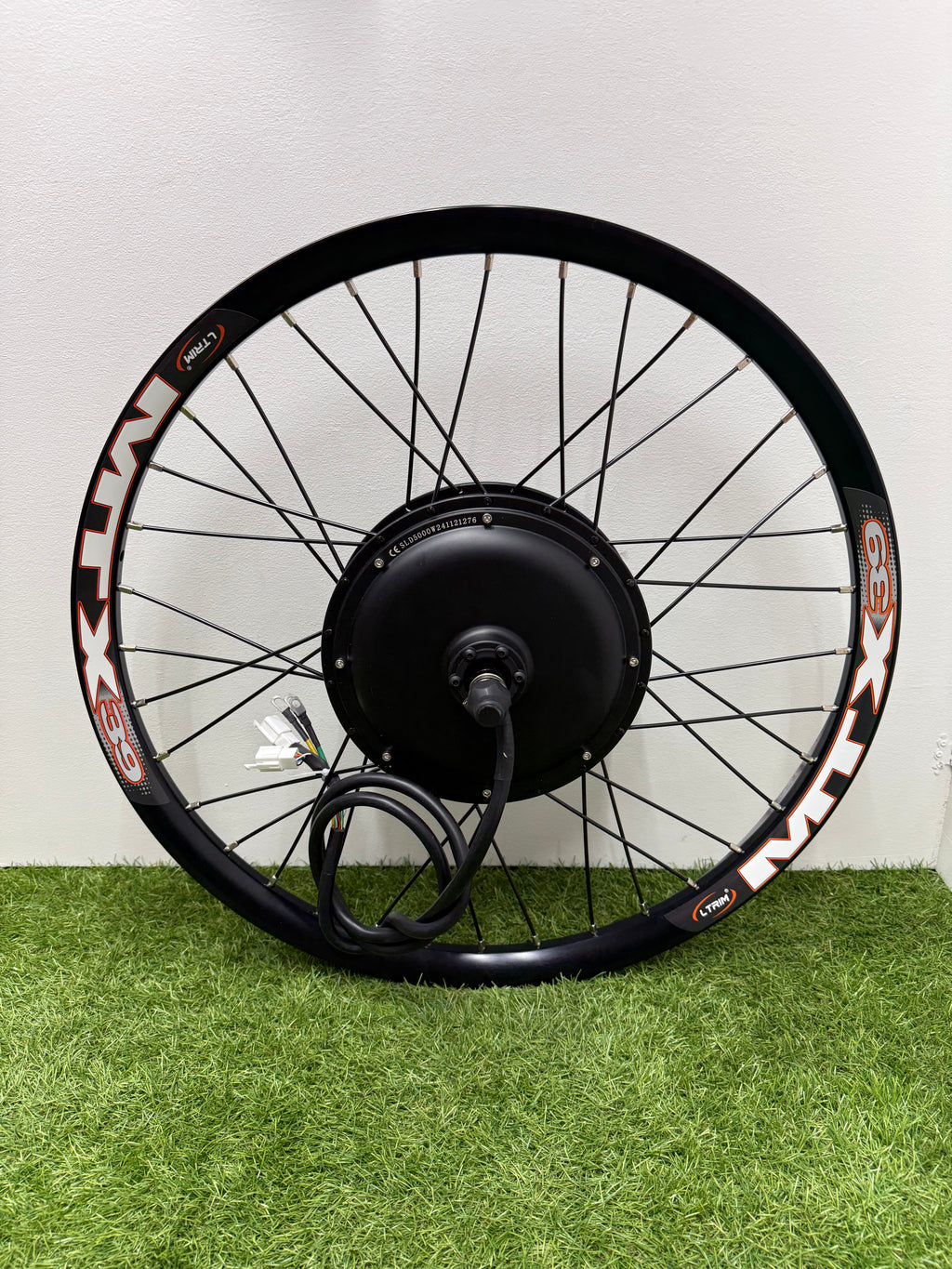

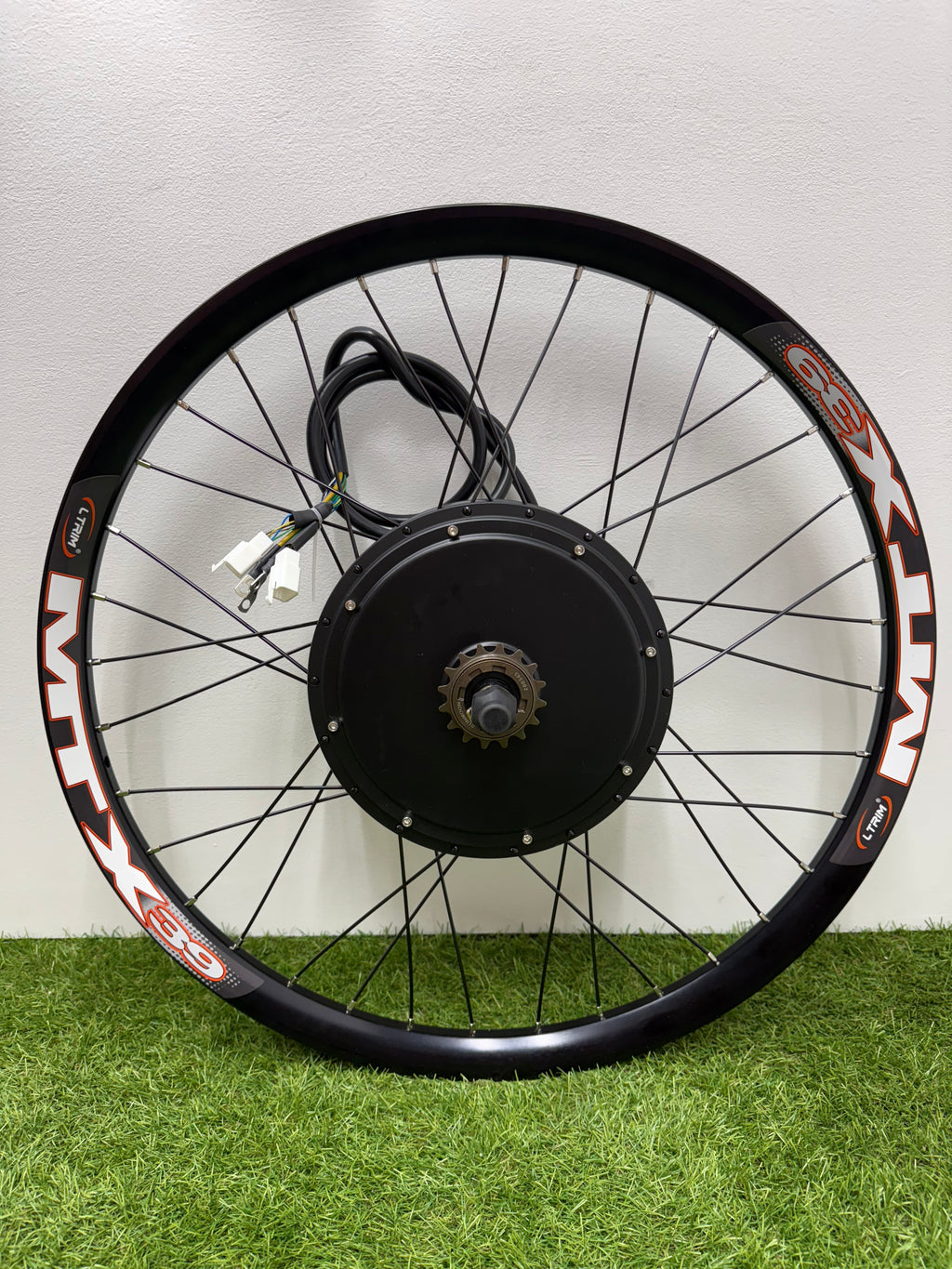

1x Wheel with 3000W motor
1x single speed freewheel

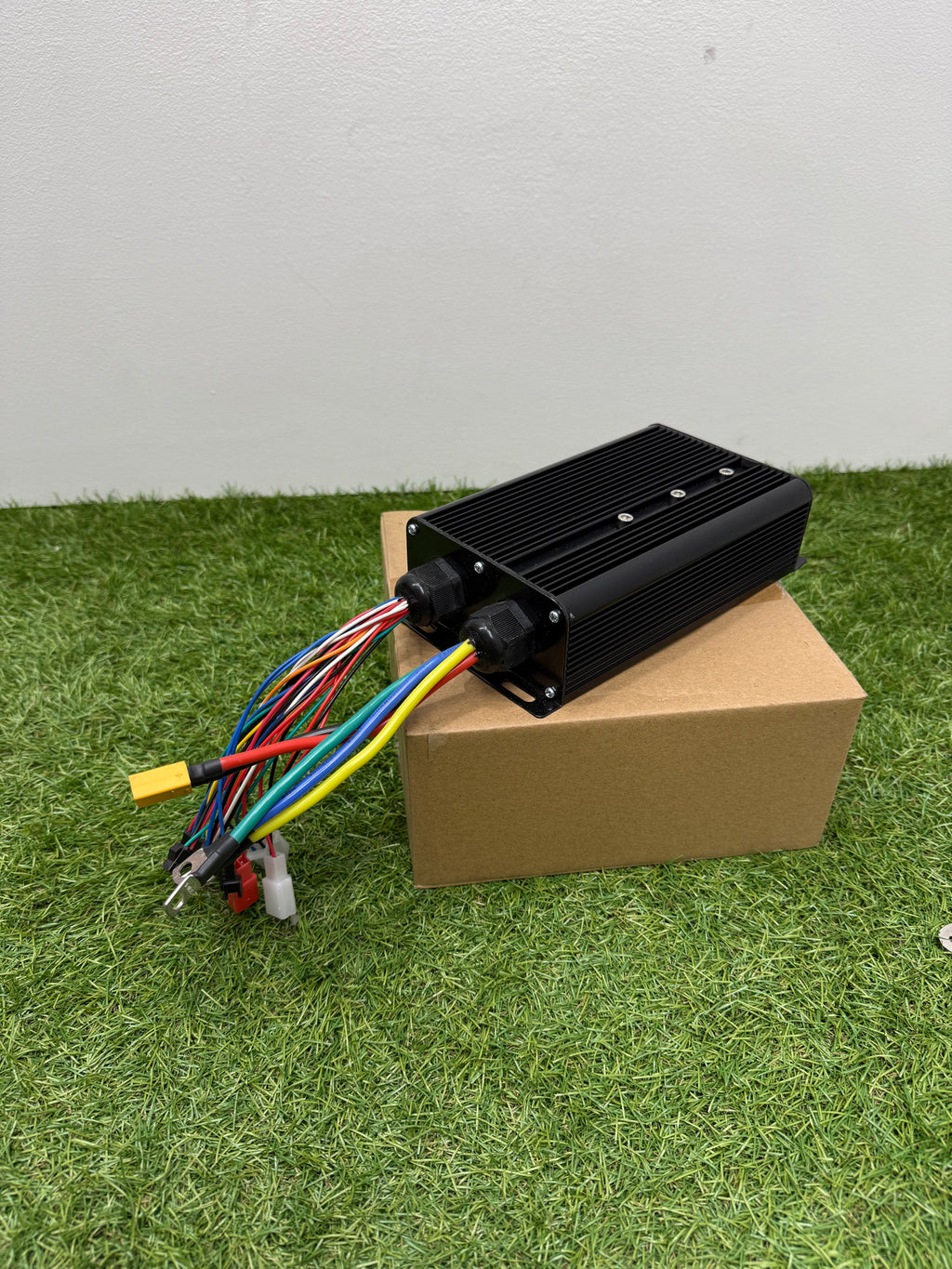

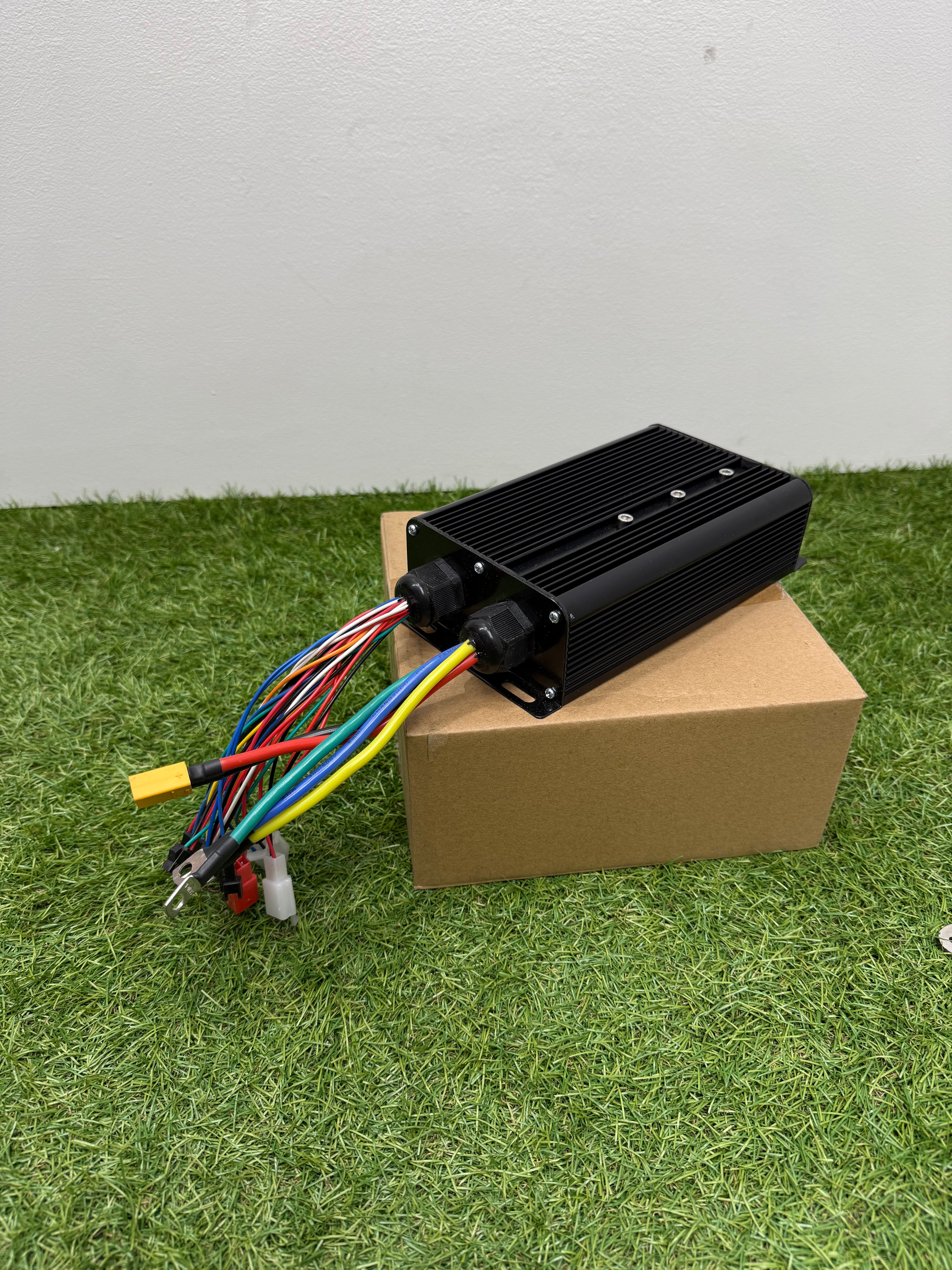

1x 60A controller With xt90 battery connector

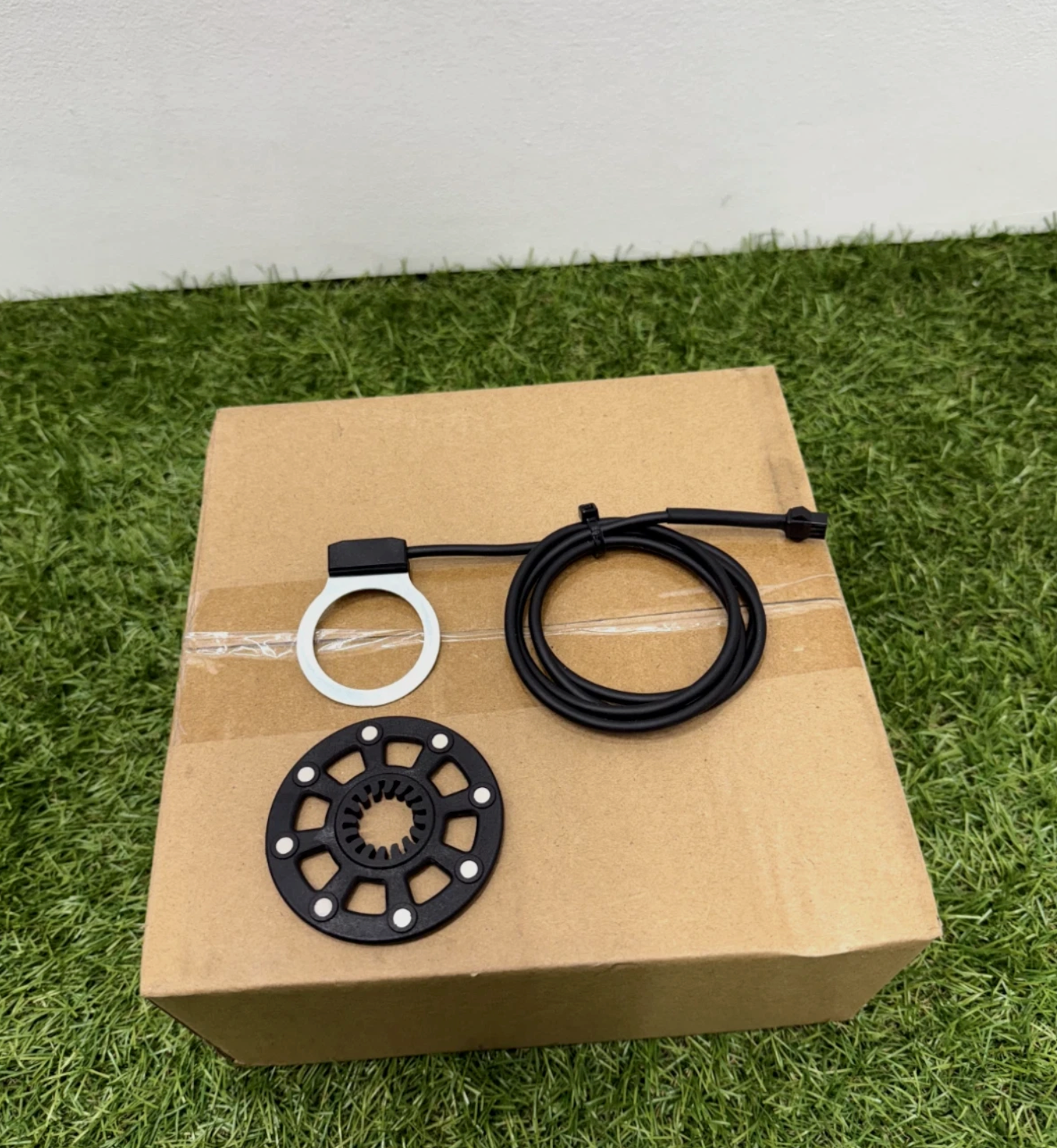

1x Pedal Assist Crank Sensor

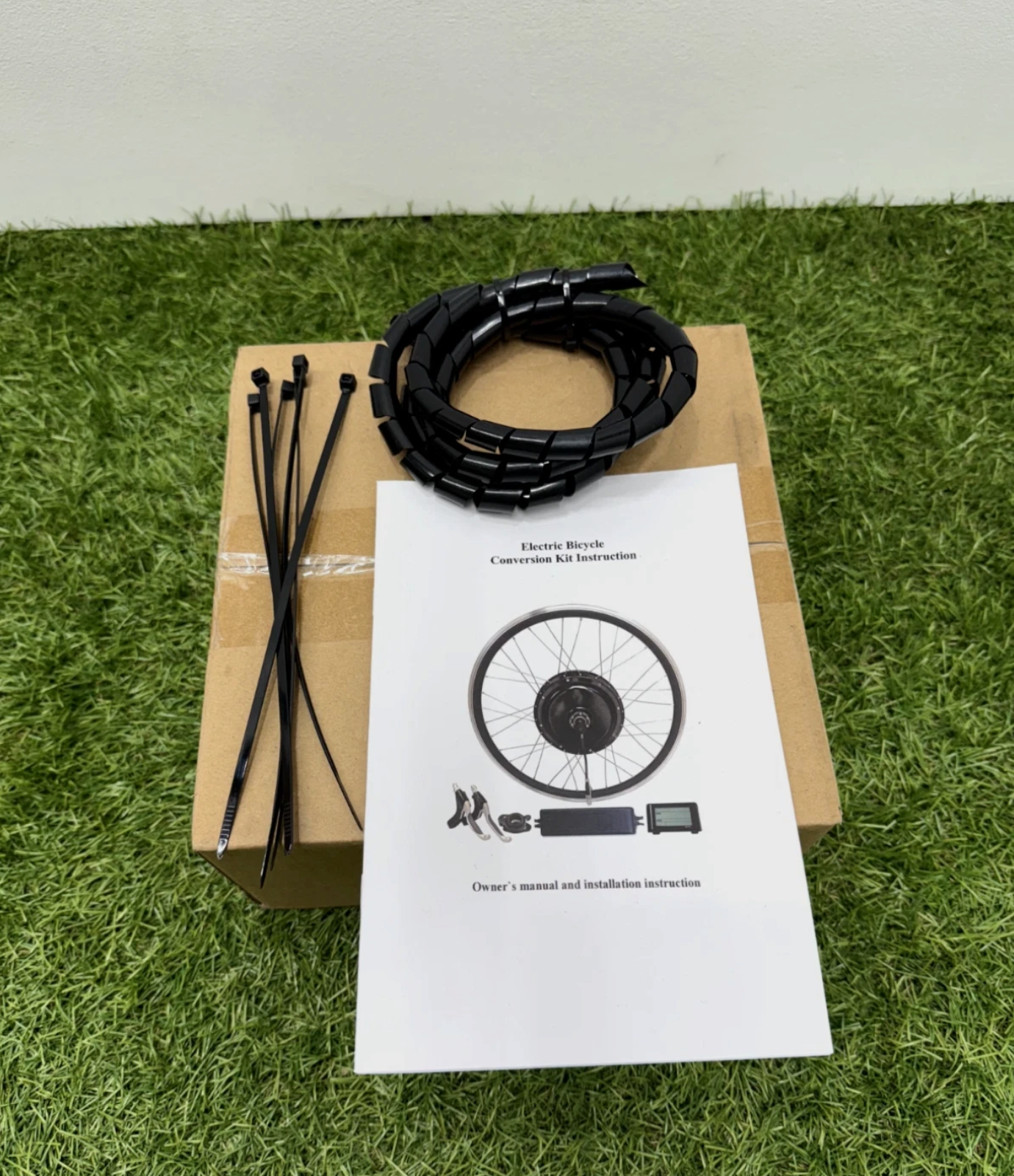

7x Cable Ties

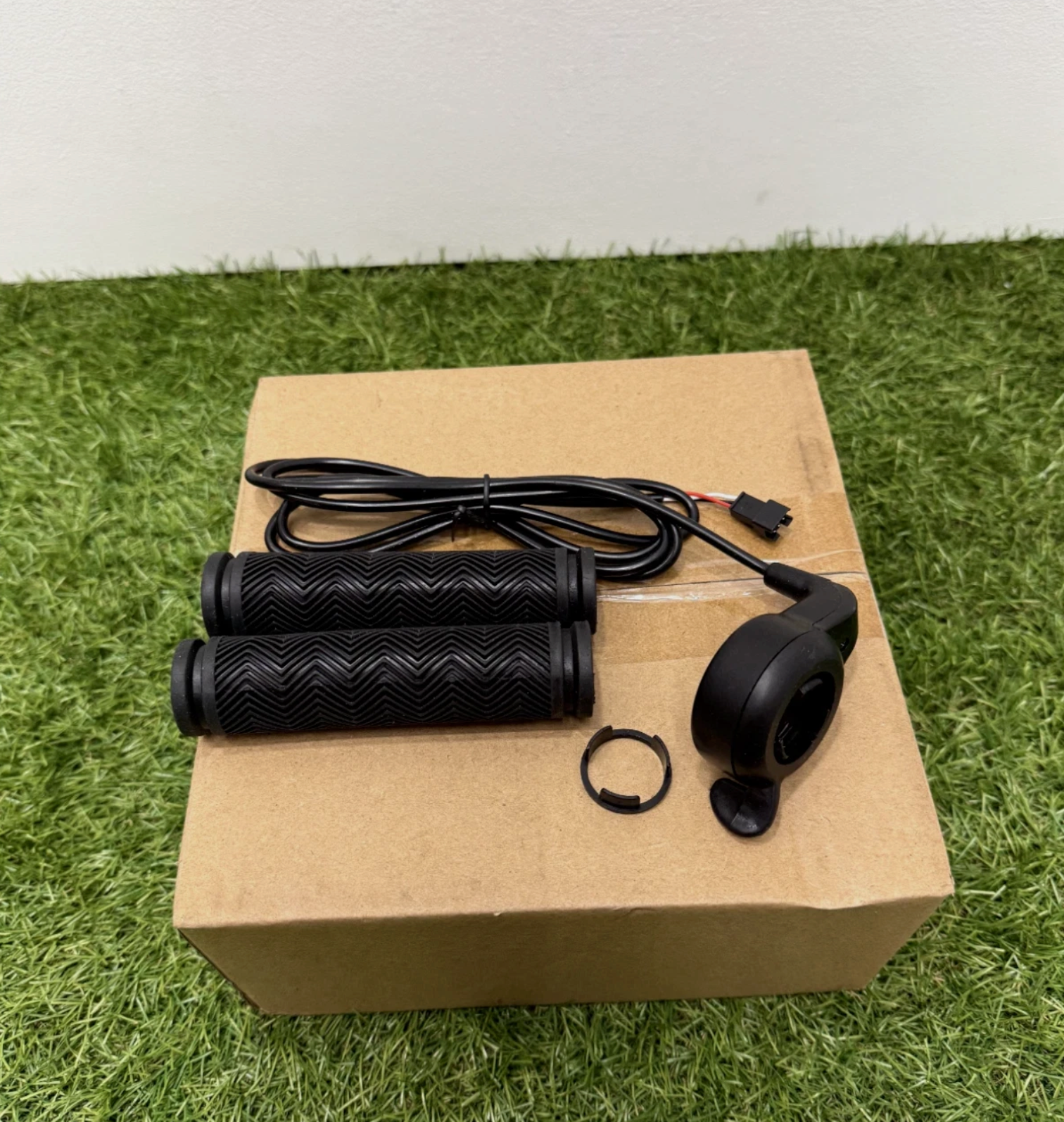

1x Thumb Twist Throttle

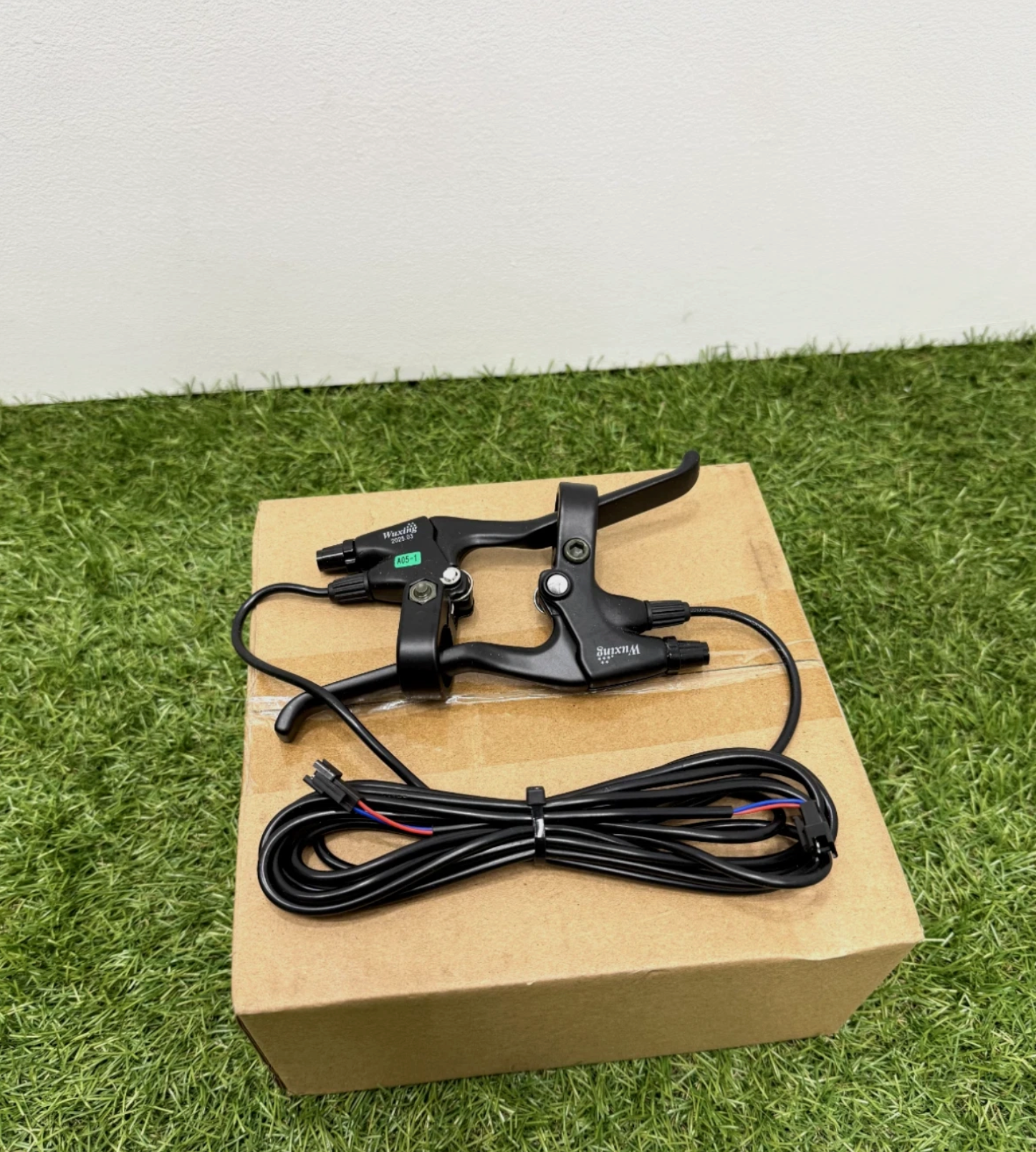

1x Pair of Brake Levers

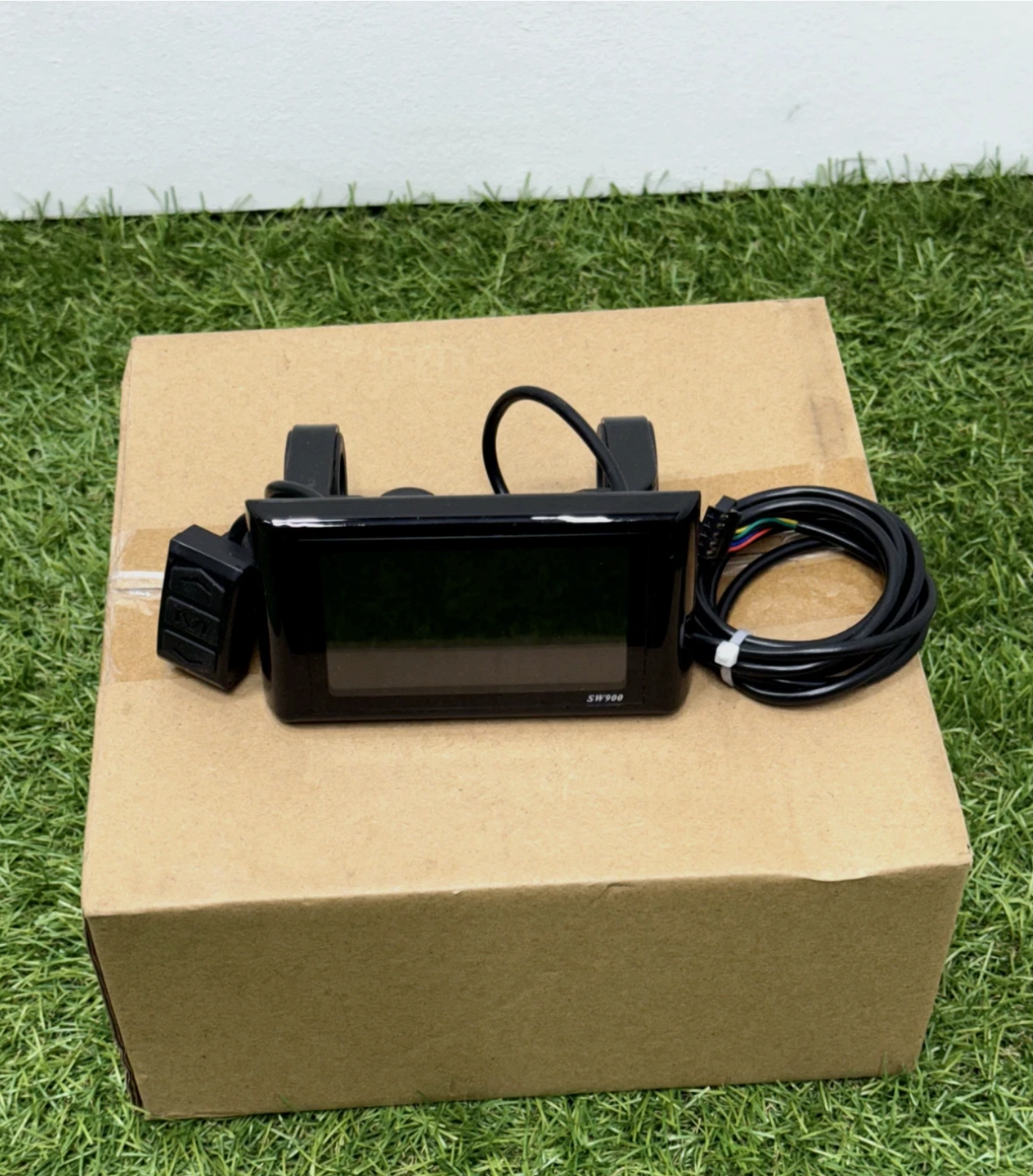

1x LCD Meter - Colour SW900
6x Disc screws
1x rim tape
1x Pair of grips

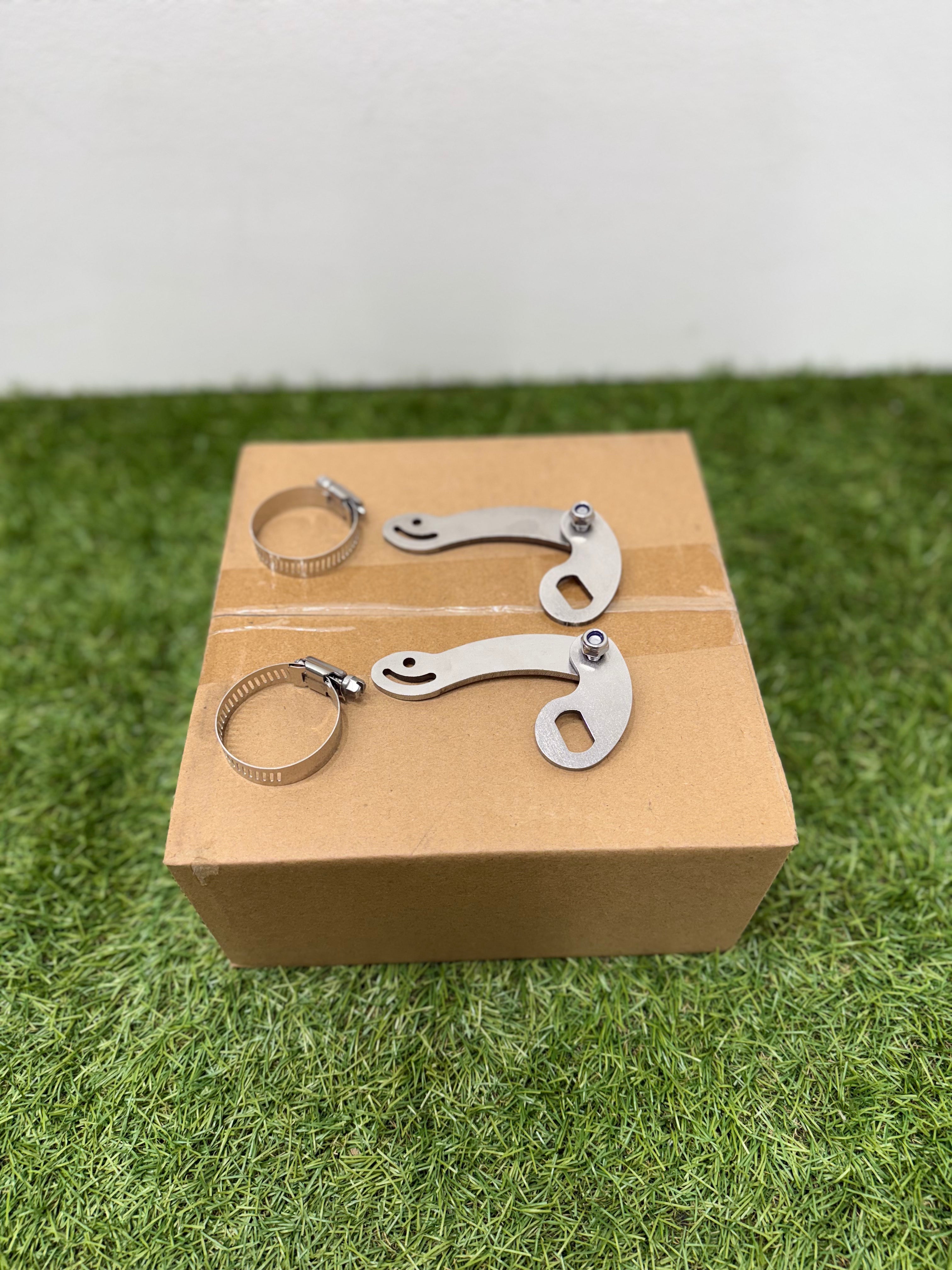

2x torque arm

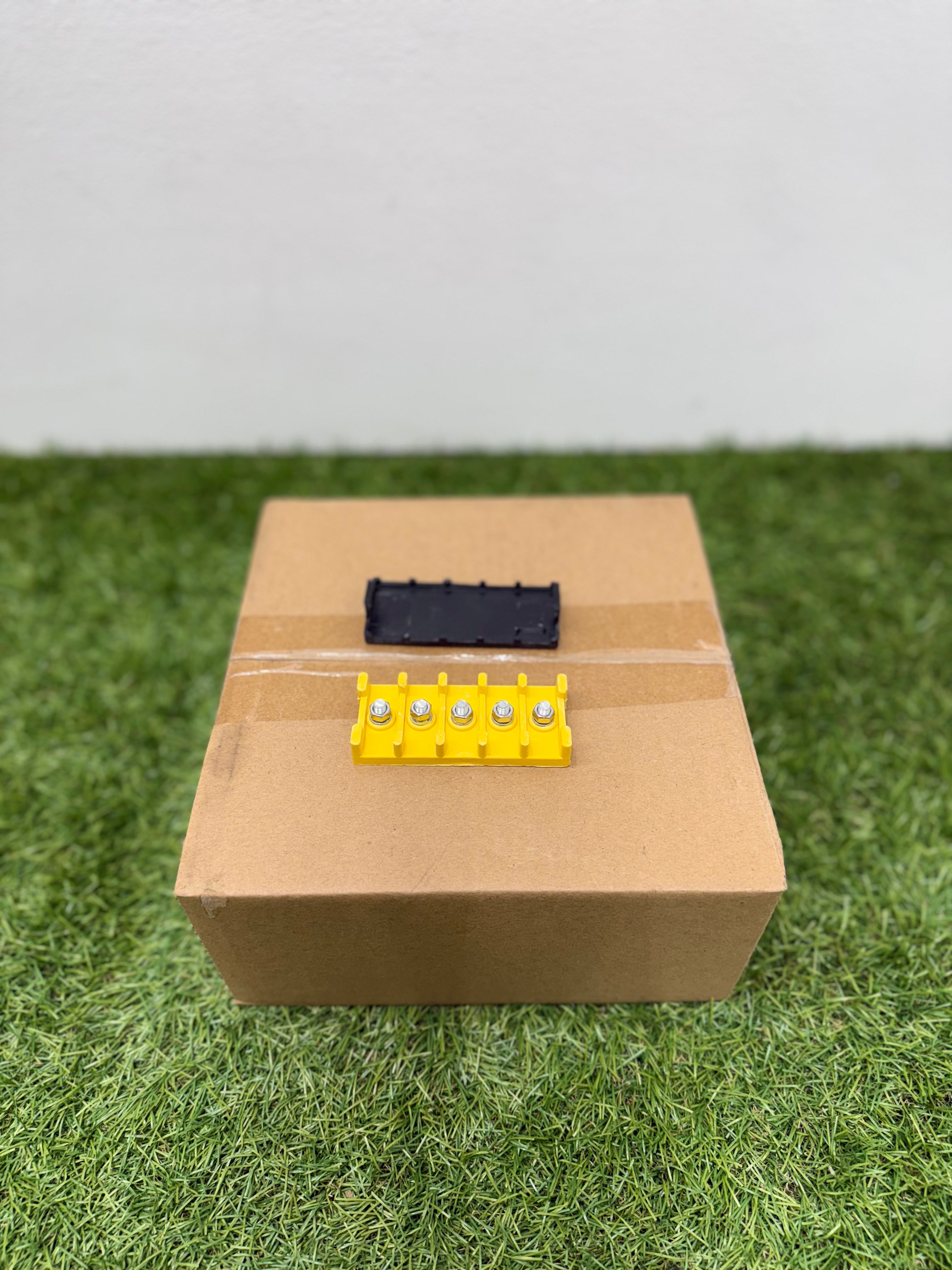

1x Junction Box for motor phase wires
Please note that you need a 72v battery with a 60a BMS or higher to power this kit we have a range of batteries available please see our other listing of get in contact and we will advise
WHAT SIZE KIT DO I NEED?
If you look on your tyre's, this will tell you if your bike has 20”, 24”, 26", 27.5", 29",700c wheels. Alternatively you can look up your bike's make and model online. Remember that a 'wheel' is a rim and a tyre together, our kits will not equate to the stated size until a tyre is fitted.
Installing a conversion kit involves mechanical and electrical work. Improper installation can cause damage, malfunction, or serious injury. Uk E Cycles is not responsible for any harm, accidents, or damages resulting from. Incorrect installation, Improper use, Modifications to the kit or bicycle and Use of incompatible bicycle components. We strongly recommend installation by a qualified bicycle technician.
By installing or using a conversion kit from Uk E cycles , you agree to the following:
-
Installation must be done correctly. Improper setup can cause injury or damage. Professional installation is recommended.
-
Not all bicycles are suitable for conversion. Check compatibility before use.
-
Follow all local e-bike laws any motor above 250 watts and can exceed 15.5 mph should not be used on uk roads.
-
You assume all risks associated with riding a converted e-bike, including mechanical failure or accidents.
-
Manufacturer is not liable for damage, injury, or legal issues resulting from installation, modification, or misuse of this product.
Use at your own risk. Inspect your bicycle regularly and ride safely.
All e-bikes/ebike kits we sell are designed for riders with a maximum weight of 110 kg. Exceeding this weight limit may result in mechanical or electrical stress beyond the intended design specifications. Please note that any damage caused by operating the e-bike with a rider above 110 kg will void the warranty. Additionally, damage resulting from motor overload—whether due to excessive rider weight, improper use, or operating conditions—will not be covered under warranty.
Spun-out wheels, accidental and intentional damage are not covered under warranty
